Vertical Slotting Machine

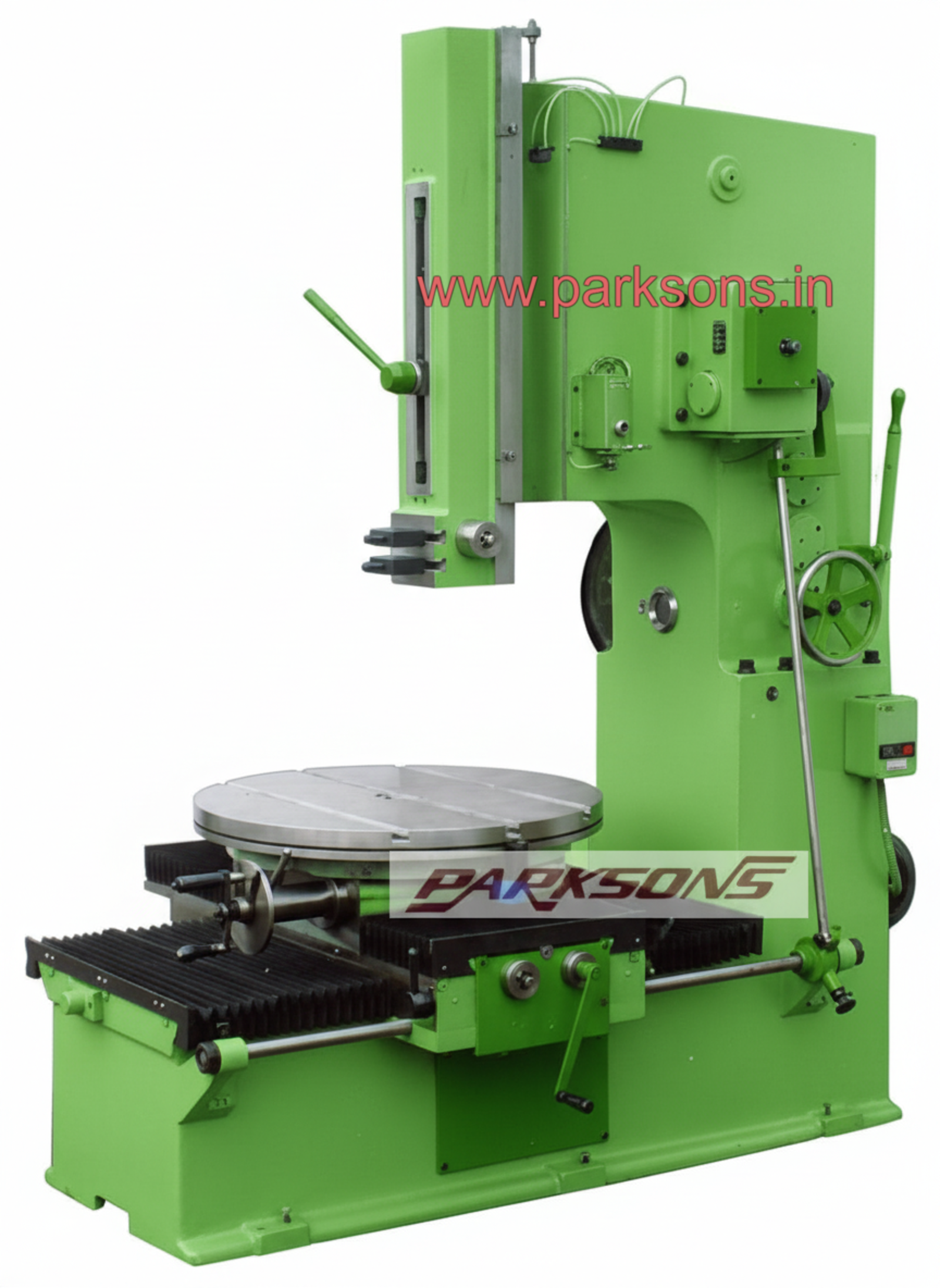

All geared vertical slotter for internal keyway cutting and internal grooving in heavy-duty plant components.

All geared vertical slotter for internal keyway cutting and internal grooving in heavy-duty plant components

Typical Applications

  • Keyway cutting in large shafts, couplings, pulleys, and gears used in cement and mining industries.

  • Internal slotting and shaping of hubs, dies, pulleys, and gear blanks in steel plant maintenance workshops.

  • Defence workshops machining transmission components and specialised internal profiles where broaching is impractical.

  • Shipyard maintenance work, including re-machining of keyways on marine shafts, housings, and heavy assemblies.

  • Preferred in maintenance and heavy workshop environments where versatility and accessibility are vital considerations for the user.

Machine Description
  • • Vertical slotting machine designed for internal slotting, shaping, and keyway cutting on heavy and awkward components.
  • • Rigid, cast-iron machine body provides stability and resistance to the repeated impact loads generated during reciprocating cutting.
  • • Vertically reciprocating ram delivers controlled cutting strokes for internal features inaccessible to milling cutters.
  • • Circular rotary table with T-slots and 360° graduations, supporting indexed slotting and circular internal work.
  • • Provision for centering mandrel, enabling concentric internal slotting on round components.
  • • Direct indexing facility allows accurate angular positioning for multi-slot and spline-type work without complex attachments.

Technical Specifications

(O) = Optional

Parameter DLS-300 DLS-450 DSL-600
Working Stroke of Ram 300 mm 450 mm 600 mm
Throat Adjustment 500 mm 675 mm 825 mm
Ram Strokes (stroke/min) 25-40-65 10-15-25-35-50-70 10-15-25-35-50-70
Rotary Table Diameter 600 mm 900 mm 1200 mm
Max Job Diameter 850 mm 1500 mm 1800 mm
Height b/w Table & Head 450 mm 700 mm 850 mm
Longitudinal Feed (Manual) 450 mm 625 mm 675 mm
Longitudinal Feed (Auto) (O) 425 mm 575 mm 625 mm
Cross Feed (Manual) 400 mm 550 mm 600 mm
Cross Feed (Auto) (O) 375 mm 500 mm 550 mm
Main Motor 2.2 kW / (O) 3.7 kW 3.7 kW / (O) 5.5 kW 7.5 kW / (O) 11 kW
Rapid Traverse Motor (O) 1.5 kW 1.5 kW 2.2 kW

Configuration Notes

  • 1. Slotting machines are slow but versatile, suited for low-volume, repair, and maintenance-oriented work.
  • 2. Best applied where internal features cannot be milled or broached economically.
  • 3. Machine selection depends on job diameter, and internal feature depth and motor power, not stroke length alone.
