Typical Applications

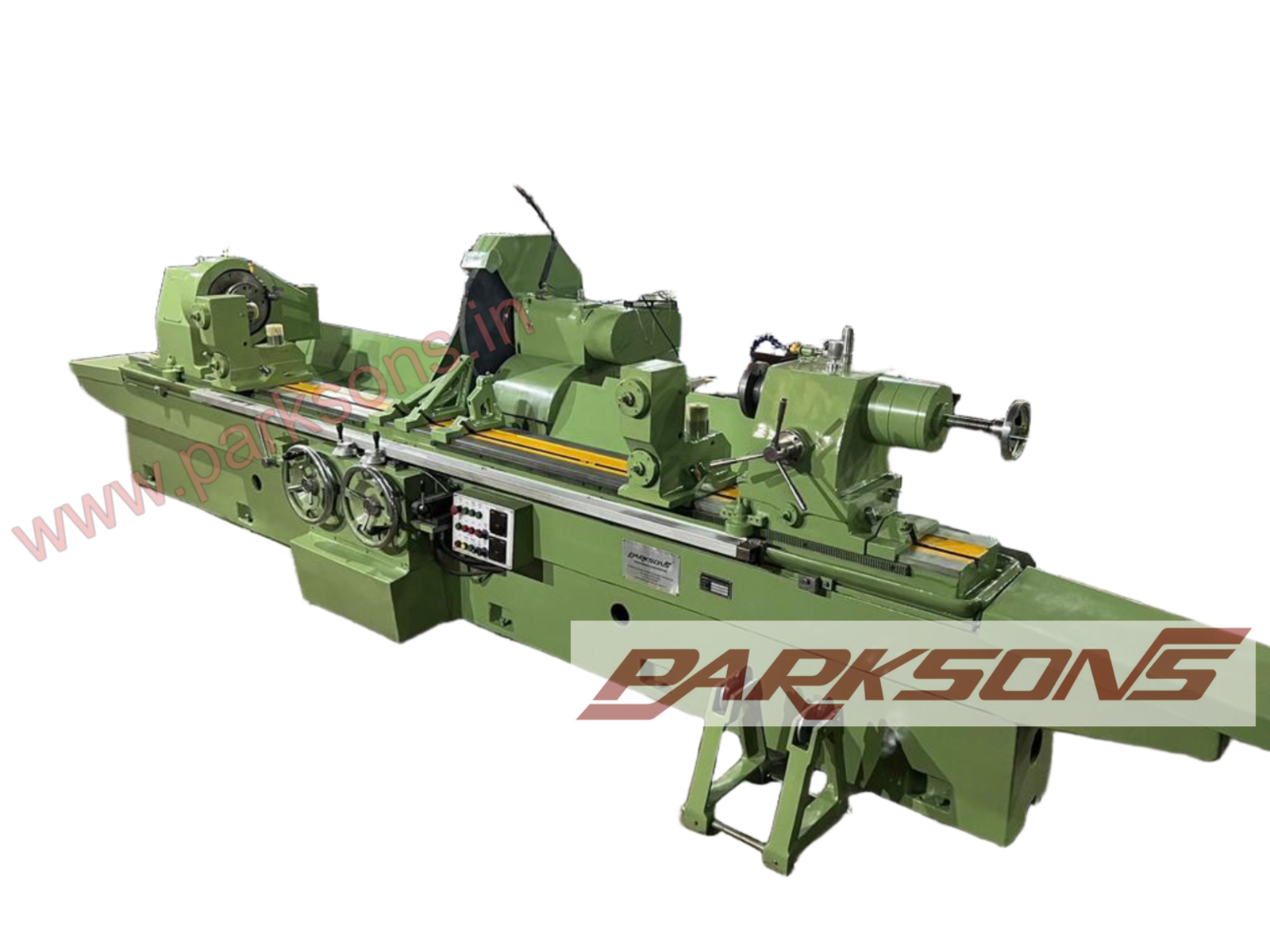

Straight cylindrical grinding of shafts and rolls in plant maintenance and heavy engineering workshops.
Grinding of long shafts, rolls, and turbine rotors in steel and power plants.
Precision finishing of pump shafts and motor shafts in cement plants.
Marine applications including grinding of propeller shafts and rollers in shipyards.
These machines are intended for straight external cylindrical grinding, not taper or angular grinding.

• Machine configuration is governed by job weight and support method to maintain stability while grinding heavy rotating masses.
• High-mass cast iron bed and structural components with V-and-flat guideways provide long-term geometric stability.
• Electromechanical table and work head drives with VFD control enable smooth, infinitely variable feed and speed control.
• Designed for wet grinding operations, with wheel head, coolant, and job support arrangements matched to straight grinding duty.
• Manual spring-loaded tailstock, with job support through centres, chucks, and steadies based on application.
• These machines are typically deployed in both production and reconditioning environments, where rigidity and repeatability matter for a smooth surface finish.

Model	RG-600	RG-1000	RG-1500	RG-3000
Centre Distance	600 mm	1000 mm	1500 mm	3000 mm
Max Job Diameter	300 mm	400 mm	500 mm	700 mm
Max Job Weight	100 kg	300 kg	500 kg	1500 kg
Center Height	150 mm	225 mm	275 mm	350 mm
Table Drive	Electromechanical with VFD
Guideways	1 Flat & 1 V
Wheel Diameter	600 to 650 mm	650 to 700 mm	700 to 750 mm	750 mm
Wheel Width	40 mm	40 mm	50 mm	50 mm
Wheel Head Motor	5.5 kW	5.5 kW	7.5 kW	7.5 kW
Work Head Drive	VFD Controlled	VFD Controlled	VFD Controlled	VFD Controlled
Job Support	Centres + Steady	Centres + Steady	Chuck + Steadies	Chuck + Steadies

Geometric Accuracy Standards: As per IS: 2368.

Heavy duty cylindrical grinders are designed around job weight, stiffness, and job support mechanism, rather than centre distance alone.
Machines can be customised to user requirements and application-specific solutions, configured for centre-to-centre grinding with fixed or travelling steadies as required.
Angular grinding applications require fundamentally different machine architecture.
