Heavy Duty Pedestal Grinder

Robust industrial pedestal grinder for rough grinding, de-burring, and fettling in maintenance workshops and foundries.

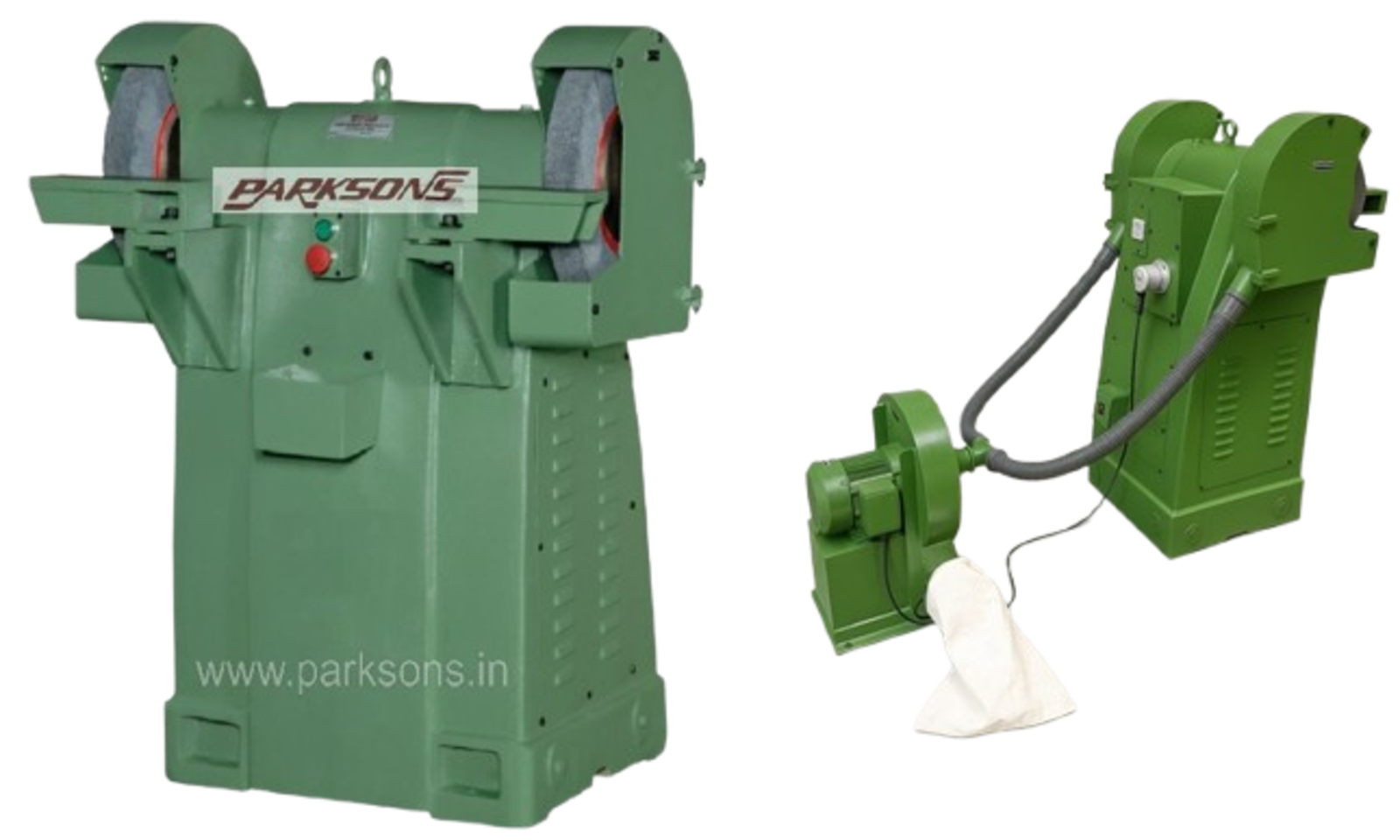

Robust industrial pedestal grinder for rough grinding, de-burring, fettling in maintenance and foundries

Typical Applications

  • Rough grinding and edge finishing operations in fabrication shops.

  • Fettling of small and medium foundry components where swing-frame grinders are impractical.

  • Tool sharpening and reconditioning in steel and cement plant maintenance workshops.

  • General utility grinding for deburring, chamfering, and edge preparation in shipyards, railway workshops, and defence plants.

  • These machines are typically deployed as shop-floor utility grinders, operating continuously under rough conditions.

Machine Description
  • • Machine body and base manufactured from high-grade grey cast iron (IS:210), providing inherent vibration damping during aggressive grinding.
  • • Power transmission from motor to spindle through fully enclosed V-belt drive, protecting the drive system from dust, scale, and debris.
  • • Case-hardened and ground high-tensile steel spindle, maintaining run-out accuracy within 5 microns for stable wheel behaviour.
  • • Heavy machine mass allows consistent grinding pressure without wheel bounce or excessive vibration.
  • • Supplied with Aluminium Oxide (vitrified) grinding wheels as standard, suitable for general steel grinding and tool sharpening.
  • • These grinders are selected for robust construction, operational stability, and safe performance under continuous industrial use, not for precision grinding work.

Technical Specifications
Model MG-14 MG-16 MG-20 MG-24
Grinding Wheel (Dia × W × Bore) 350 × 50 × 50.8 mm 400 × 50 × 127 mm 500 × 75 × 203.2 mm 600 × 75 × 203.2 mm
Motor Power 2.2 kW 3.7 kW 5.5 kW x 2 Nos. 5.5 kW x 2 Nos.
Wheel Speed 1625 RPM 1400 RPM 1140 & 1400 RPM 950, 1140 & 1400 RPM
Wheel Centre Distance 745 mm 745 mm 1280 mm 1280 mm
Spindle Centre to Base 860 mm 860 mm 860 mm 860 mm
Machine Weight (Approx.) 550 Kg 580 Kg 1000 Kg 1150 Kg

Configuration Notes

  • Heavy duty pedestal grinders are engineered for sustained grinding loads, where mass, rigidity, and spindle stability matter more than surface finish.
  • Resinoid grinding wheels can be supplied for heavy stock-removal or snagging applications.
  • Use of resinoid wheels requires higher motor rating and must be specified at the time of ordering.
  • Wheel type, motor power, and dust or coolant arrangement should be selected based on grinding intensity and duty cycle.

Accessories

  • • Machine Lamp
  • • Twist Drill Grinding Attachment
  • • Motorised Dust Extraction System (for Dry Grinding)
  • • Coolant System (for Wet Grinding)
