Surface Grinding Machine

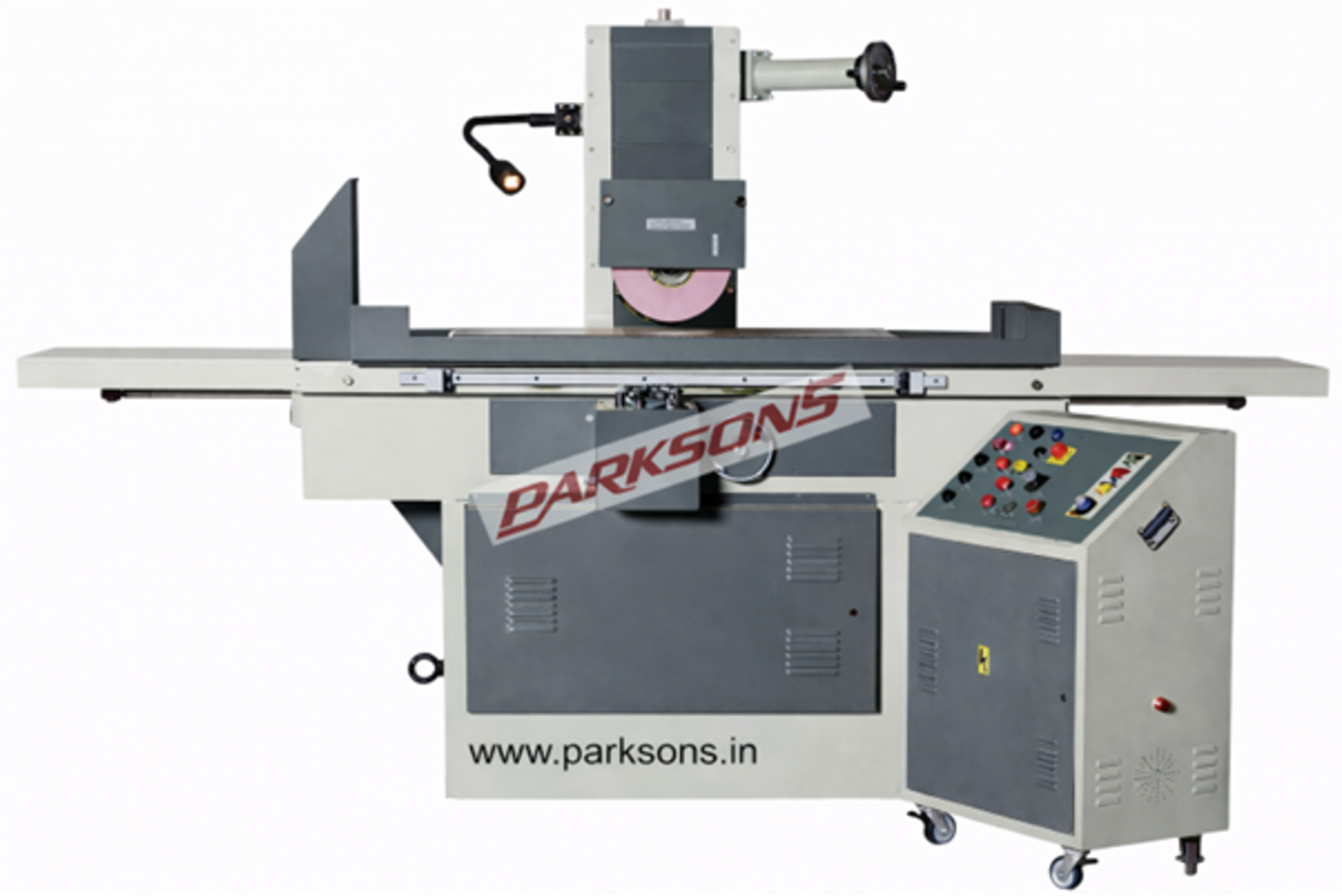

Precision surface grinder for achieving high-flatness tolerances on industrial dies, plates, and machine slides.

Precision surface grinder for achieving high-flatness tolerances on industrial dies, plates, and machine slides

Typical Applications

  • Precision finishing of flat surfaces on dies, fixtures, gauge plates, and machine bases.

  • Power and cement plant maintenance, including grinding of bearing plates, liners, wear plates, and housings.

  • Steel plant toolrooms for reconditioning flat tools, shear blades, and precision plates.

  • Defence workshops for accurate surface finishing of armour plates, tooling components, and precision assemblies.

  • Surface grinding is typically used as a final finishing or corrective operation after machining, where flatness, parallelism, and surface finish are critical.

Machine Description
  • • Surface grinding machines are designed for precision finishing of flat surfaces where milling cannot reliably achieve the required flatness or surface finish.
  • • Commonly deployed in toolrooms and production workshops as accuracy-defining assets rather than high material-removal machines.
  • • Rigid machine structure manufactured from high-grade, stress-relieved grey cast iron conforming to IS:210, ensuring long-term dimensional stability.
  • • Box-type column design providing high rigidity and effective vibration damping during grinding operations.
  • • Hardened and ground alloy steel spindle supported on matched bearing pairs, grease-packed for life, suitable for sustained grinding duty with stable thermal behaviour.
  • • Electro-mechanical table movements enabling smooth and controlled longitudinal and cross travel.
  • • Guideways lined with Turcite-B to reduce friction, prevent stick-slip, and minimise long-term wear.
  • • Electromagnetic chuck with electronic controller for quick clamping, demagnetising, and safe job release directly on the machine.

Technical Specifications
Parameter HYD-2412 HYD-4012 HYD-3216 HYD-4020
Table Size 600 × 300 mm 1000 × 300 mm 800 × 400 mm 1000 × 500 mm
Longitudinal Travel 660 mm 1070 mm 850 mm 1070 mm
Cross Travel 360 mm 360 mm 490 mm 580 mm
Spindle Centre to Tabletop 450 mm 450 mm 550 mm 550 mm
Longitudinal Table Speed 0-15 M/min 0-15 M/min 0-15 M/min 0-15 M/min
Spindle Speed 1400-2800 RPM 1400-2800 RPM 1400 RPM 1400 RPM
Grinding Wheel (Dia × Width × Bore) 250 × 25 × 76.2 mm 250 × 25 × 76.2 mm 350 × 40 × 127 mm 350 × 40 × 127 mm
Spindle Motor 1.1 / 1.5 kW 1.1 / 1.5 kW 5.5 kW 5.5 kW
Cross Feed Motor 0.37 kW 0.37 kW 0.37 kW 0.37 kW
Hydraulic Motor 1.5 kW 1.5 kW 1.5 kW 3 kW

Geometric Accuracy

Standards as per IS:2743.

  • • Straightness of table movement: 0.02 mm / 1000 mm
  • • Flatness of table surface: 0.01 mm / 1000 mm
  • • Perpendicularity between axes: 0.005 mm / 250 mm

Accessories & Options

  • • 2-Axis Digital Read Out (Linear Scales).
  • • Magnetic separator for coolant system & paper band filter.
  • • Sine vice, sine table, radius and angular dressing attachments.
  • • Motorised dust extraction system (for dry grinding).
  • • 1-Axis Numeric Control: Auto down-feed on Z-axis with servo drive and HMI.
  • • 2-Axis Numeric Control: Servo-controlled Y and Z axes with HMI for repetitive cycles.

Configuration Notes

  • 1. Surface grinding machines are precision finishing assets, typically selected based on required flatness, surface finish, component size, weight, and workshop cleanliness.
  • 2. They are not substitutes for milling or heavy stock-removal machines, but complementary tools in a complete mechanical workshop.
