Typical Applications

Keyway cutting, slotting, and end milling on shafts, couplings, gear blanks, and similar components.
Slotting, pocketing, and facing operations on pump housings, motor casings, and medium-sized castings.
Machining of flat surfaces on dies, fixtures, and welded fabrications in heavy workshops.
Repetitive vertical milling operations in cement, power, and railway maintenance shops.
Workshops requiring a robust single-axis vertical milling solution without multi-face complexity.

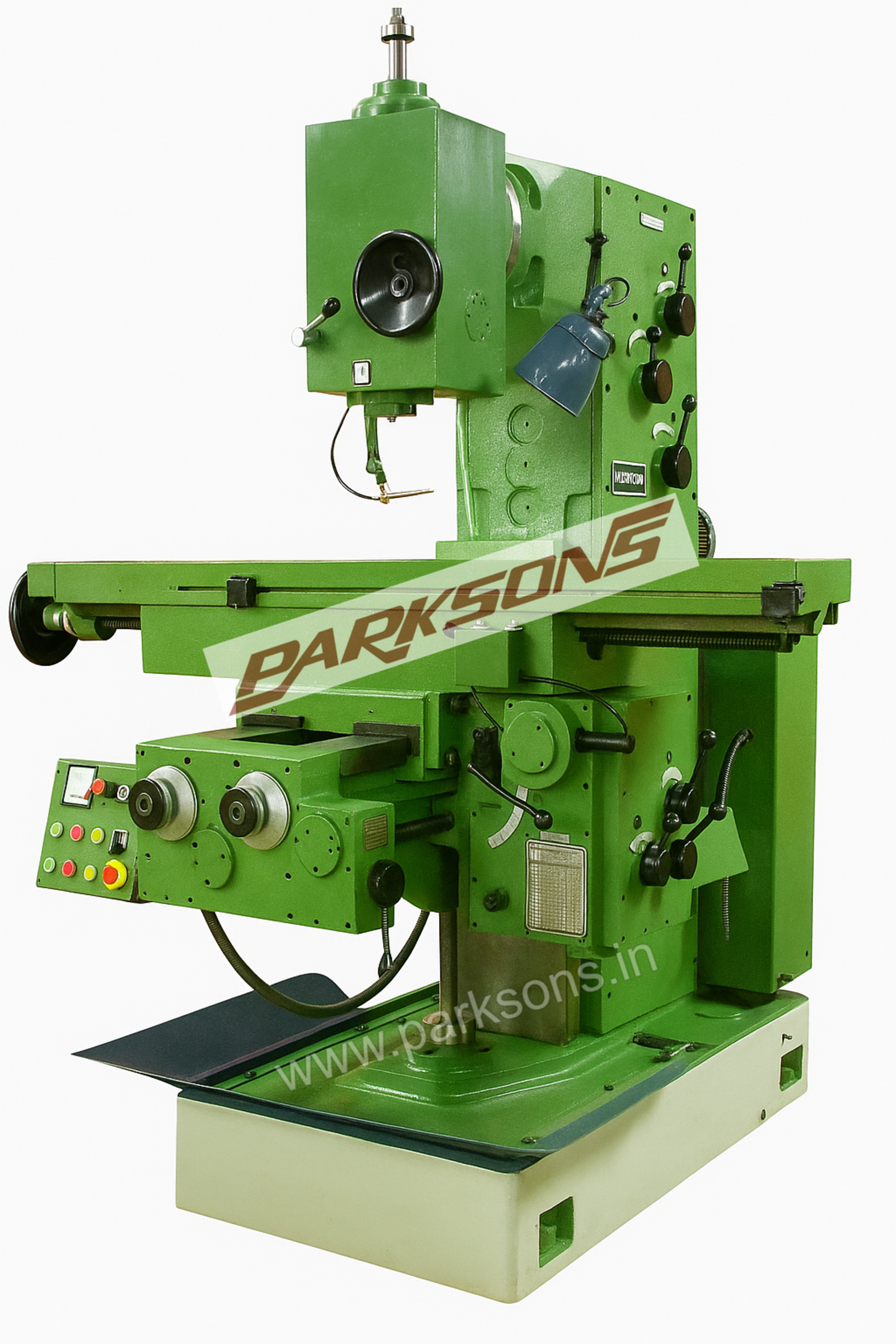

• Knee-type vertical milling machine intended for straightforward vertical milling, drilling, and slotting operations.
• Rigid knee-and-column construction using stress-relieved FG-260 grey cast iron to provide damping under axial cutting loads.
• Case-hardened and ground alloy steel spindle and headstock gearing, suited for sustained vertical milling duty at low to medium speeds.
• Powered feeds on all three axes via servo-controlled drive, allowing smooth and adjustable feed rates during extended cuts.
• Simpler and more direct machine architecture than universal milling machines, preferred where angular or multi-face machining is not required.
• Well suited to maintenance and production-support workshops where durability, repeatability, and ease of operation are important to the user.

Model	SV-3S	SV-4S
Table Clamping Area	1350 × 310mm	1600 × 350mm
Table Traverse (Long. ǀ Cross ǀ Vert.)	975mm ǀ 330mm ǀ 400mm	1275mm ǀ 330mm ǀ 400mm
Spindle Taper	ISO-40	ISO-50
Spindle Speed Range	35-1800 RPM	35-1800 RPM
Feed Range (X & Y)	16-800 mm/min.	16-800 mm/min.
Rapid Feed (X & Y)	3200 mm/min.	3200 mm/min.
Feed Range (Z)	4-200 mm/min.	4-200 mm/min.
Rapid Feed (Z)	800 mm/min.	800 mm/min.
Spindle Motor (TEFC Induction)	5.5 kW	7.5 kW
Feed Motor (Servo)	1.5 kW	3 kW
Machine Weight (Approx.)	2900 Kg	4000 Kg

Geometric & Functional Accuracy as per IS: 2200.
