Typical Applications

Turning and boring of large-diameter valve bodies, turbine casings, and pump housings in power and process industries.
Machining of heavy, asymmetrical castings and fabrications that are impractical or unsafe to mount on horizontal lathes.
Shipyard machining of stern frames, propeller bosses, and large marine housings.
Defence and heavy engineering workshops for vehicle hubs, armour components, and large flanges.
Fabrication and maintenance shops handling large base plates, rings, and structural components.

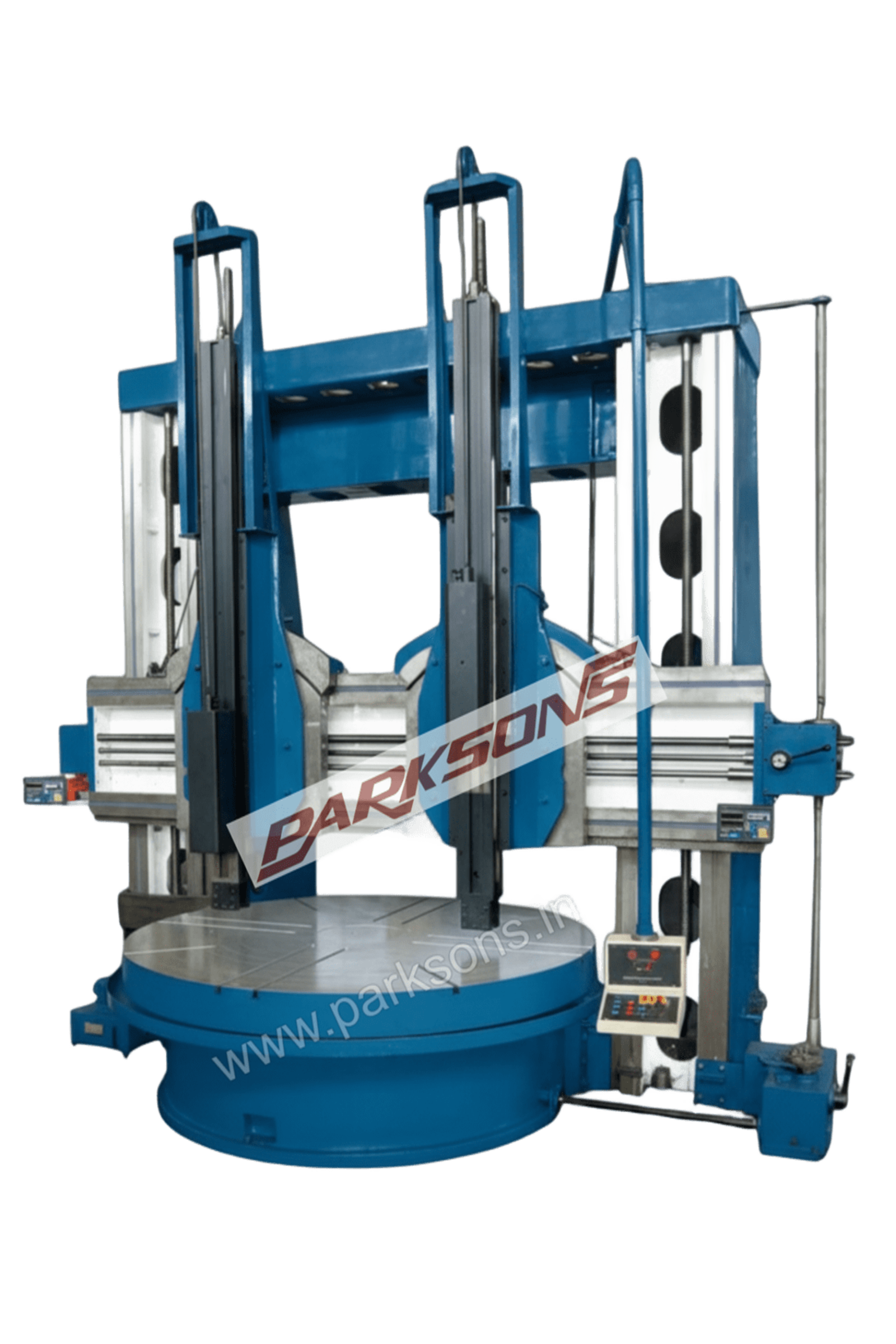

• Double-column VTL for machining large-diameter, high-mass components where vertical mounting is structurally advantageous.
• Rotary table supports the workpiece under gravity, improving stability when handling heavy or unbalanced parts.
• Rigid double-column structure with cross rail and ram provides balanced load paths and resistance to deflection.
• Cast iron machine structure (IS:210) ensures damping and long-term geometric stability under heavy cutting loads.
• Motorised cross rail and ram movement allow controlled positioning across the machine’s working height.
• Vertical layout simplifies loading and clamping of large components using overhead handling equipment.

Model	SVT-1.5	SVT-2	SVT-2.5
Table Diameter	1500 mm	2000 mm	2500 mm
Max. Turning Diameter	1750 mm	2250 mm	2800 mm
Max. Working Height	1200 mm	1500 mm	1500 mm
Max Vertical Travel of Ram Head	750 mm	1000 mm	1200 mm
Table Speed	3-30 RPM	2-25 RPM	2-20 RPM
Main Motor	11 kW / (O) 18.5 kW	15 kW / (O) 25 kW	18.5 kW / (O) 37 kW
Swivel Angle of Ram Head	±30⁰

(O) = Optional Configuration
