Typical Applications
-
Cutting of medium-sized bars, plates, billets, and structural sections in steel and cement plant workshops.
-
Workshop stock preparation for power, defence, and general heavy fabrication.
-
General-purpose cutting of rounds and sections where job mix varies and batch sizes are moderate.
-
Railway workshops cutting axles, beams, and structural members for maintenance and fabrication support.
-
Selected where versatility, reliability, and ease of operation are more important than high-volume or fully automated cutting. Used as utility stock-cutting equipment, positioned between light-duty saws and heavy double-column machines.
Machine Description
Machine Description

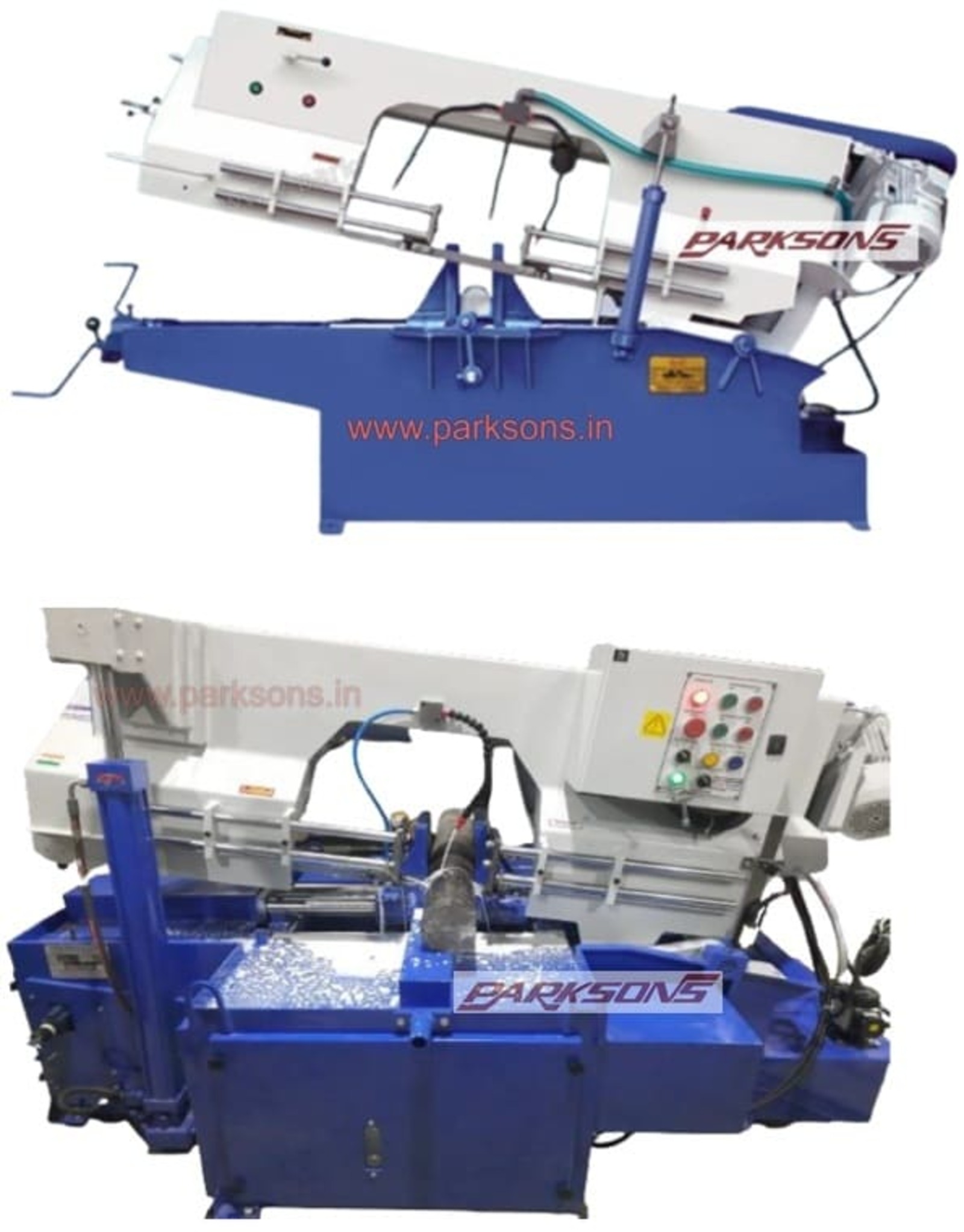

- • Single column pivot-type horizontal bandsaws are designed for consistent cutting of medium sections with emphasis on torque stability, controlled feed, and low operating complexity.
- • Hydraulic horizontal single-column pivot design, allowing controlled descent of the saw frame during cutting.
- • Worm reduction gearbox drive providing stable cutting torque at low power consumption.
- • Hydraulic feed control maintains a uniform cutting rate across varying cross-sections.
- • Automatic shut-off after job completion to prevent idle running and unnecessary blade wear.
- • Chip removal brush and dedicated chip tray provided to prevent chip recirculation into the coolant.
- • Service-friendly construction suited to maintenance and fabrication environments.
Technical Specifications
Technical Specifications
Note: Use of bimetal band saw blades is recommended for consistent cutting performance and blade life.
| Parameter | LX-1 HS | LX-10 HS | LX-2 HS | LX-4 HS |
|---|---|---|---|---|
| Cutting Capacity (Round at 90⁰) | 200 mm | 250 mm | 300 mm | 400 mm |
| Cutting Capacity (Square at 90⁰) | 175 × 175 mm | 200 × 200 mm | 250 × 250 mm | 350 × 350 mm |
| Blade Speed | 20-75 M/min | 20-75 M/min | 20-75 M/min | 20-80 M/min |
| Blade Size | 3000 × 27 × 0.9 mm | 3500 × 27 × 0.9 mm | 3760 × 27 × 0.9 mm | 4420 × 34 × 1.1 mm |
| Main Motor | 1 kW | 1 kW | 1.5 kW | 1.5 kW |
Accuracy
Geometric Accuracy: Cutting taper ± 0.1 mm/ 100 mm diameter.
Accessories
- • Adjustable bar rest assembly.
- • Hydraulic vice (in lieu of manual vice).
Configuration Notes
- 1. Single column pivot-type bandsaws are intended for medium-duty, general workshop cutting where section sizes and job mix vary.
- 2. For continuous cutting of heavy sections, large billets, or high-volume repetitive jobs, double column band saws offer superior rigidity and throughput and should be considered instead.
