Application:
-
For long work pieces (8 to 30 meters in length), which require machining operations only at the end of the work piece
-
Typical usage is for milling, drilling, and tapping of long I-beam & H-beam made of structural steel
Basic Design:
-
Rigid, heavily ribbed, stress relieved grey cast iron structure conforming to IS:210
-
Machine bed, telescopic sliding guide way with bellow cover protection, vertical single column moving on machine bed
-
All the slides are driven by lead screw, coupled to worm reduction gear boxes and AC induction motor.
-
Slides are made of cast iron sliding surface and driven through either lead screw / phosphor bronze nut OR rolled ball screw. The bottom slide moves in longitudinal direction.
-

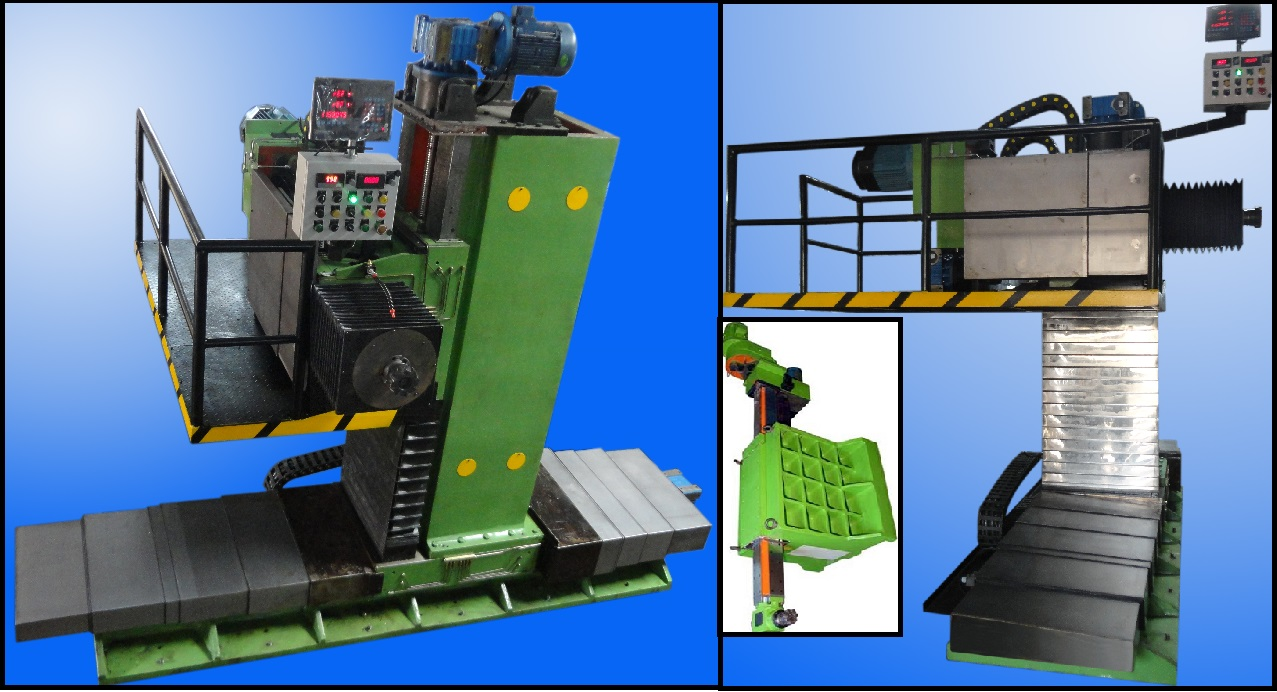

The column carries the cross-travel guide way with bellow protection, spindle head and drive. A Milling Head is mounted on top of the slide. The rotating spindle carries the tool holder and milling cutter.
|
Machining Capabilities |
|||
|
DRILLING |
MILLING |
TAPPING |
FACING |
|
X axis – Longitudinal Slide |
Y axis – Vertical Slide |
||
|
Stroke |
1000 to 3000 mm |
Stroke |
300 to 1000 mm |
|
Rapid traverse |
1000 mm/min |
Rapid traverse |
1000 mm/min |
|
Feed Rate |
40-1000 mm/min (step-less) AC Drive |
Feed Rate |
40-1000 mm/min (step-less) AC Drive |
|
Motor Power |
2.2 kW |
Motor Power |
2.2 kW |
|
Z axis – Cross/Ram slide |
Milling Head |
||
|
Stroke |
300 to 600 mm |
Milling Head |
ISO-40 or ISO-50 |
|
Rapid traverse |
1000 mm/min |
Power |
3.7 to 11 kW |
|
Feed Rate |
40-1000 mm/min (step-less) AC Drive |
Tool locking system |
Manual through draw-bar OR Automatic arbour clamping / de-clamping |
|
Motor Power |
2.2 kW |
Drive |
VFD Interfaced Spindle Motor |
