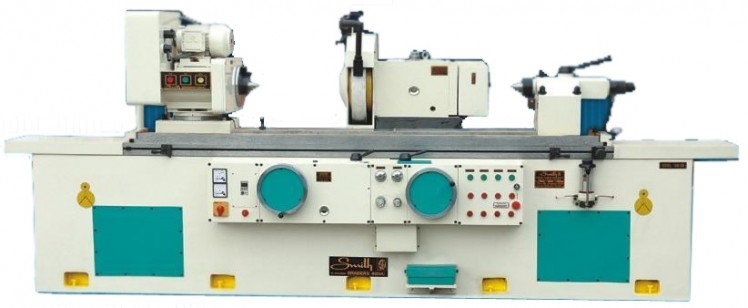

Hydraulic Cylindrical Grinder

Hydraulic Cylindrical Grinder

Description:

  • Machines made from high grade, stress relieved grey cast iron conforming to IS:210
  • Hydraulic table traverse with infinitely variable speed range
  • Anti-friction Turcite ‘B’ lining for the sliding surfaces of table feed and cross feed
  • All shafts and spindles are made of hardened and ground EN-353 steel material
  • Hardened and ground preloaded precision ball screw with linear motion guide ways for cross feed
  • Hydraulic power pack elements from Bosch / Yuken

Specifications: Common Parameters for all Models

Table



Table Swivel

+6º, -3º

Table Speed  (Hydraulic)

50-1000 mm/min (infinitely variable)

Work Head



Grinding Wheel Size

355mm x 38mm x 127mm

Work Head Speed

35 to 350 RPM

Spindle Taper

MT-5

Work Head Swivel

90º

Work Head Power

1 kW

Wheel Head



Grinding Wheel Size

508mm x 50.8mm x 254mm

Wheel Speed

1200- 1500 RPM

Wheel Head Swivel

±45º

Wheel Head Power

3.7 kW



MODEL

SGI-1500

SGI-2000

SGI-2500

SGI-3000

SGI-4000

Capacity











Centre Height

150 mm

250mm

250mm

250mm

250mm

Swing Over Bed

300 mm

500 mm

500 mm

500 mm

500 mm

                              Table











Centre to Centre Distance

1500 mm

2000mm

2500mm

3000mm

4000mm

Table Traverse Motor

1.5 kW

1.5 kW

2.2 kW

2.2 kW

3.7 kW



Accuracy: Geometric & Functional Accuracy as per IS: 2368

  • Surface finish 0.002 mm/100 mm
  • True Run Out of Spindle Taper: 0.005 mm



Accessories: Internal Grinding Attachment, Wheel Balancing Stand, Steady Rest, Radius Truing Device, 4-Jaw Chuck, Magnetic Coolant Separator with Paper Band Filter
