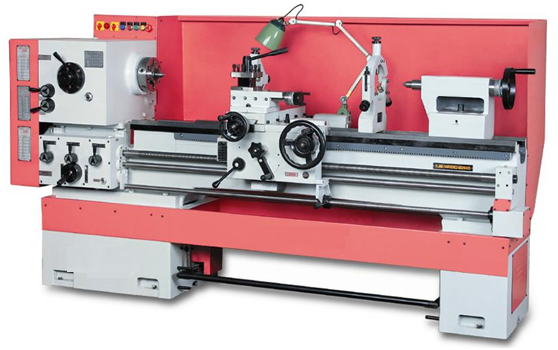

Description: All Geared Precision Centre Lathe
- Case Hardened & Ground, Alloy Steel Spindle made from 20MnCr5 material, mounted on P-5 class Taper Roller Bearings
- Hardened & Ground Alloy Steel Gears & Spline in Headstock
- Universal Feed Box with Toughened Steel Gears
- High Grade Grey Cast Iron Bed conforming to IS:210 with Prismatic, Flame Hardened, Guide Ways
- Built-in gap bed for machining large diameter components
Specifications:
|
MODEL |
GHL-175 |
SAG-254 |
GHL-300 |
|
Capacity |
|
||
|
Center Height |
175 mm |
250 mm / (O) 300 mm |
300 mm |
|
Swing Over Bed |
350 mm |
500 mm / (O) 600 mm |
600 mm |
|
Swing Over Cross Slide |
175 mm |
300 mm / (O) 350 mm |
370 mm |
|
Swing in Gap |
620 mm |
800mm / (O) 850 mm |
850 mm |
|
Distance Between Centers |
750mm/ 1000 mm |
1000/1500/2000 mm 2500/3000mm |
1500/2000/2500 mm 3000/3500/4000mm |
|
Bed Width |
280 mm |
325 mm |
355 mm |
|
Headstock |
|
||
|
Spindle Taper |
MT-5 |
MT-6 |
MT-6 |
|
Spindle Nose / Bore |
D1-4/ 40 mm |
A2-6/ 52 mm |
A2-8/ 80 mm |
|
Spindle Speed Range |
54-1200 RPM / (O) 54-1700 RPM |
30-1300 RPM / (0) 40-1700 RPM |
27-700 RPM / (O) 45-1200 RPM |
|
Feed Box |
|
||
|
Longitudinal Feed Range |
0.033 to 0.74 mm/rev. |
0.05 to 1.6 mm/rev. |
0.037 to 1.34 mm/rev. |
|
Cross Feed Range |
0.021 to 0.458 mm/rev. |
0.014 to 0.4 mm/rev. |
0.016 to 0.58 mm/rev. |
|
Metric Thread Range |
0.2 to 7mm |
0.2 to 7mm |
0.2 to 7mm |
|
Inch Thread Range |
72 to 4 TPI |
72 to 4 TPI |
72 to 4 TPI |
|
Module Thread Range |
0.4 to 3 Module |
0.4 to 3 Module |
0.4 to 3 Module |
|
DP Thread Range |
44 to 8 DP |
44 to 8 DP |
44 to 8 DP |
|
Power |
|
||
|
Main Motor |
1.5 kW |
3.7 kW / (O) 5.5 kW |
5.5 kW/ (O) 7.5 kW |
Note: (O) = Optional
Accuracy: Geometric & Functional Accuracy as per IS: 1878 (Part-I)
- Work piece on Chuck (Turning)-Roundness of 0.01mm taper near headstock
- Work piece between Centers (Facing) Flatness of 0.02mm/ 300mm length in concave direction

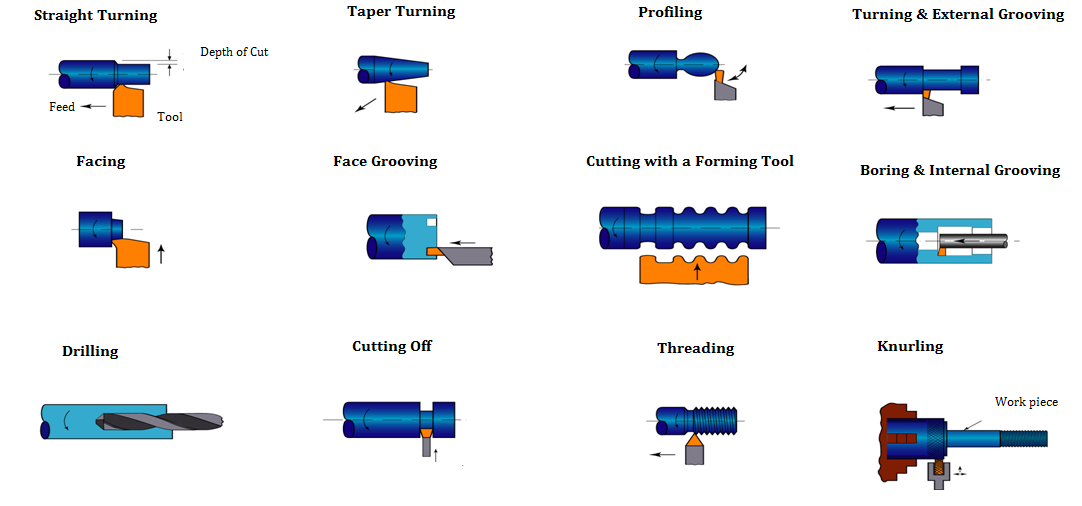

Operations:

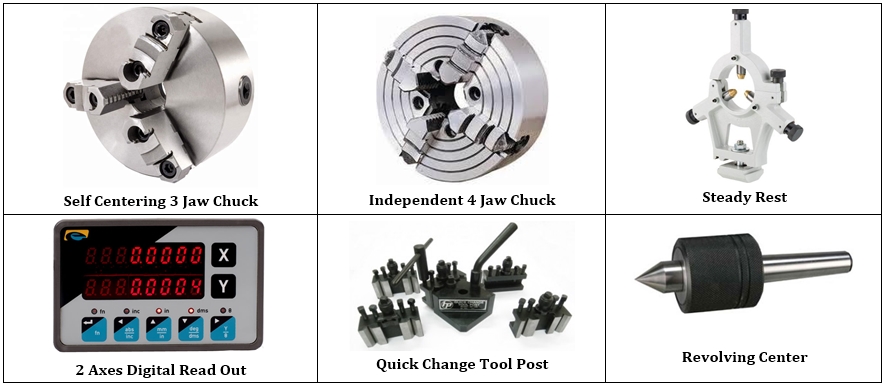

Lathe Accessories:
