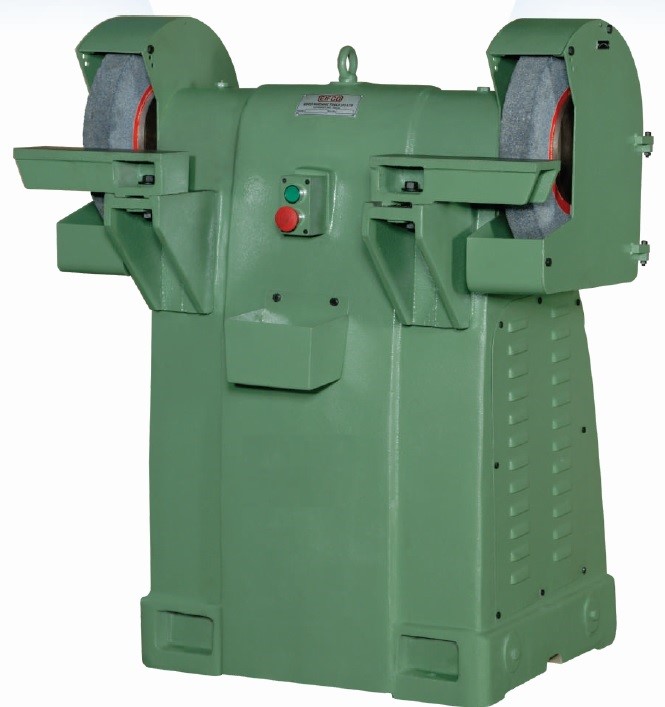

Description:
- Machines made from high grade grey cast iron conforming to IS:210
- The drive from the motor to the spindle is by V-belts and is completely enclosed within the body
- Case hardened & ground high tensile steel spindle with run out accuracy within 5 micron
- Powerful and heavy weight machines to withstand heavy cutting load and ensure high resistance to vibration
Specifications: (With Vitrified Bonded Wheels)
|
MODEL |
MG-10 |
MG-12 |
MG-14 |
MG-16 |
MG-24 |
|
Grinding Wheel (Dia x Width x Bore) |
250 x 25 x 31.75mm |
300 x 40 x 50.8mm |
350 x 50 x 50.8mm |
400 x 50 x 127mm |
600 x 75 x 203.2mm |
|
Motor Power |
0.75 kW |
1.5 kW |
2.2 kW |
3.7 kW |
5.5 kW x 2 Nos. |
|
Wheel Speed |
2290 RPM |
1900 RPM |
1625 RPM |
1400 RPM |
950, 1125 & 1400 RPM |
|
Wheel Centre Distance |
645mm |
645mm |
745mm |
745mm |
1280mm |
|
Spindle Centre to Base |
860mm |
860mm |
860mm |
860mm |
860mm |
|
Net Weight |
400 Kg |
410 Kg |
550 Kg |
580 Kg |
1150 Kg |
Accuracy: Geometric & Functional Accuracy as per IS: 2538
- True Run Out of Spindle Taper: 0.05 mm
- Axial slip of spindle: 0.1 mm
