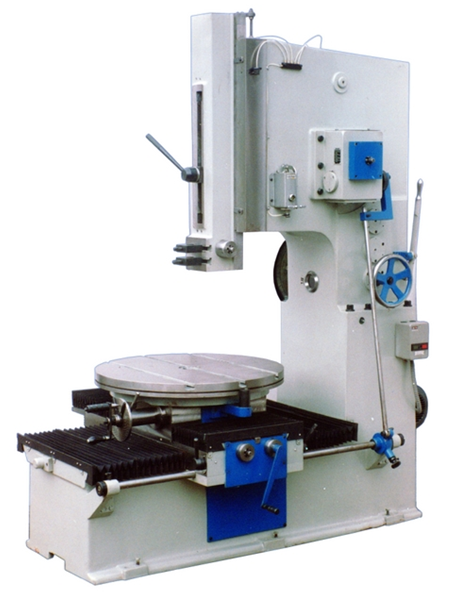

Description:
- Machines made from high grade, stress relieved, grey cast iron
- The circular table is provided with T-slots. It is divided on its circumference into 360º.
- A tapered centre hole in the table allows reception of the centering mandrel while machining circular slotting work.
- Direct indexing is provided for accurately locating the various positions.
|
MODEL |
DLS-250 |
DLS-300 |
DLS-450 |
DSL-500 |
DSL-600 |
|
Capacity |
|
|
|
|
|
|
Working Stroke of Ram |
225mm |
300mm |
450mm |
500 mm |
600 mm |
|
Throat Adjustment |
350mm |
500mm |
675mm |
700 mm |
825 mm |
|
Ram Strokes |
30-60-90 stroke/min |
25-40-65 stroke/min |
10-15-25-35-50-70 stroke/min |
||
|
Rotary Table |
|
|
|
|
|
|
Rotary Table Diameter |
375mm |
600mm |
900mm |
900mm |
1000 mm |
|
Max Job Diameter |
750mm |
850mm |
1500mm |
1500 mm |
1600 mm |
|
Height between Table & Head |
375mm |
450mm |
700mm |
700 mm |
850 mm |
|
Table Traverse |
|
|
|
|
|
|
Longitudinal Feed (Manual) |
325mm |
450mm |
625mm |
625mm |
675 mm |
|
Longitudinal Feed (Auto) Optional |
300mm |
425mm |
575mm |
575mm |
625 mm |
|
Cross Feed(Manual) |
250mm |
400mm |
550mm |
550mm |
600 mm |
|
Cross Feed (Auto) Optional |
225mm |
375mm |
500mm |
500mm |
550 mm |
|
Motor |
|
|
|
||
|
Main Motor |
1.5 kW/ (O) 2.2 kW |
2.2 kW/ (O) 3.7 kW |
3.7 kW / (O) 5.5 kW |
5.5 kW/ (O) 7.5 kW |
7.5 kW/ (O) 10.5 kW |
|
Rapid Traverse Motor (O) |
N.A. |
1.5 kW |
1.5 kW |
1.5 kW |
1.5 kW |
(O) = Optional
Accuracy: Geometric & functional accuracy as per IS:2308
- Perpendicularity of the ram movement to table surface in longitudinal direction 0.02mm/300mm
- Perpendicularity of the ram movement to table surface in traverse direction 0.02mm/300mm
Accessories: Tilting Head, Auto Feed for Rotary Table, Rapid Traverse for Table, Self Centering Chuck, Tool Holder
Application:
- Cutting slots, splines, keyway- internal and external
- Machining internal and external gears, concave, circular, semi circular and convex surfaces, dies, punches
- Shaping internal and external forms or profile
- Internal machining of blind holes
- Machining of shapes which are difficult produce on shaper
