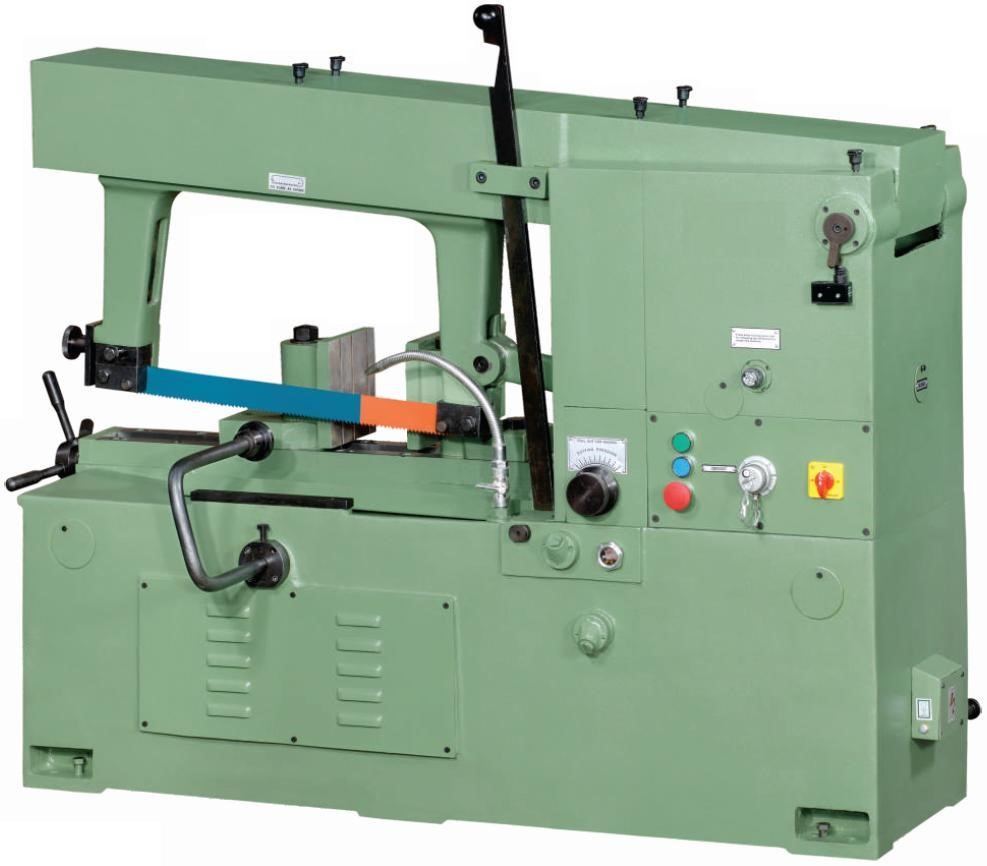

Description:
- Machines made from high grade grey cast iron conforming to IS:210
- Excellent surface finish of casting by shot blasting process
- Hydraulic movement of cutting arm
- The arm lifts out of contact of the work piece in the forward stroke to prevent damage to the blade or work piece
- Three speed cutting feed controlled by a lever allows to adjust speed according to the material
- Auto lift of cutting arm after job completion
- Motorized Coolant System allows smooth cutting operation
Specifications:
|
Model |
HP-200 |
HP-300 |
|
Cutting Capacity (Round) at 90⁰ |
200mm |
300mm |
|
Cutting Capacity (Square) at 90⁰ |
175mm x 175 mm |
250mm x 250mm |
|
Length of Stroke |
140mm |
140mm |
|
Cutting Speed |
80-100-125 stroke/min |
80-100-125 stroke/min |
|
Blade Size |
400mm x 32mm x 1.6mm |
525mm x 45mm x 2.25 mm |
|
Main Motor |
0.75 kW |
1.5 kW |
|
Coolant Motor |
0.09 kW |
0.09 kW |
Accuracy: As per IS: 3405
- Cutting taper: ± 0.1 mm/ 100 mm diameter
- Axial play of saw carriage: 0.3 mm
Accessories:
Adjustable Bar Rest, V-jaws for Bundle Clamping, Adjustable Material Stop, Machine Lamp
