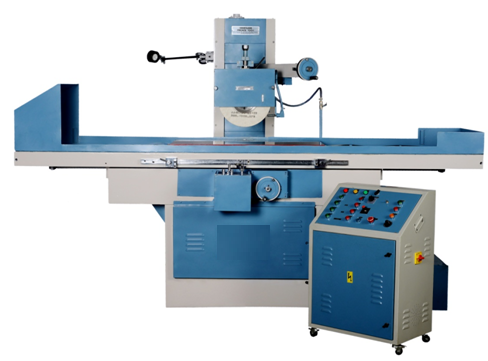

Description:
- Machines made from high grade, stress relieved grey cast iron conforming to IS:210
- Box type column design to provide excellent dampening effect and movement is done through electromechanical drive
- Hardened and ground alloy steel spindle with matched pair bearings and greased packed for life.
- Hardened and ground lead screws for precise positioning.
- Lubrication is also provided through the hydraulic system for all slides during power on.
- Hydraulic system is housed outside the machine for better thermal insulation and maintenance.
- All machines come with electromagnetic chuck for job clamping.
- Electronic controller for magnetic chuck for quick release and demagnetizing jobs on chuck itself.
- Guide ways are coated with Turcite B lining for reduced wear & tear.
- Separate electrical tower panel for ease of operation.
Specifications:
|
MODEL |
HYD-208 |
HYD-2412 |
HYD-4012 |
HYD-4020 |
HYD-4820 |
|
Table Working Area |
450mm x 200mm |
600mm x 300mm |
1000mm x 300mm |
1000mm x 500mm |
1200mm x 500mm |
|
Longitudinal Table Travel |
510 mm |
660 mm |
1070 mm |
1070 mm |
1250mm |
|
Cross Feed Column Travel |
250 mm |
360 mm |
360 mm |
580 mm |
580 mm |
|
Spindle Centre to Table Top |
330mm |
450mm |
450mm |
450mm |
450mm |
|
Longitudinal Table Speed |
0-15 M/min (O) 0-20 M/min |
0-15 M/min (O) 0-20 M/min |
0-15 M/min (O) 0-20 M/min |
0-20 M/min |
0-20 M/min |
|
Auto Cross Feed |
0.3 to 6 stroke/min |
||||
|
Spindle Speed |
2800 RPM |
1400-2800 RPM |
1400-2800 RPM |
1400 RPM |
1400 RPM |
|
Grinding Wheel |
200 x 20 x 50.8mm |
250 x 25 x 76.2mm |
250 x 25 x 76.2mm |
350 x 40 x 127mm |
350 x 40 x 127mm |
|
Spindle Motor |
1.5 kW |
1.1/ 1.5 kW |
1.1/ 1.5 kW |
5.5 kW |
5.5 kW |
|
Elevation Motor |
0.16 kW |
0.16 kW |
0.16 kW |
0.16 kW |
0.16 kW |
|
Cross Feed Motor |
0.37 kW |
0.37 kW |
0.37 kW |
0.37 kW |
0.37 kW |
|
Hydraulic Motor |
1.5 kW |
1.5 kW |
1.5 kW |
3 kW |
3 kW |
(O) = Optional
Accuracy: Geometric & Functional Accuracy as per IS:2743
- Straightness of longitudinal movement of table: 0.02mm/ 1000mm
- Flatness of table surface: 0.01mm/ 1000mm
- Perpendicularity of each axis with respect to each other: 0.005mm/ 250mm

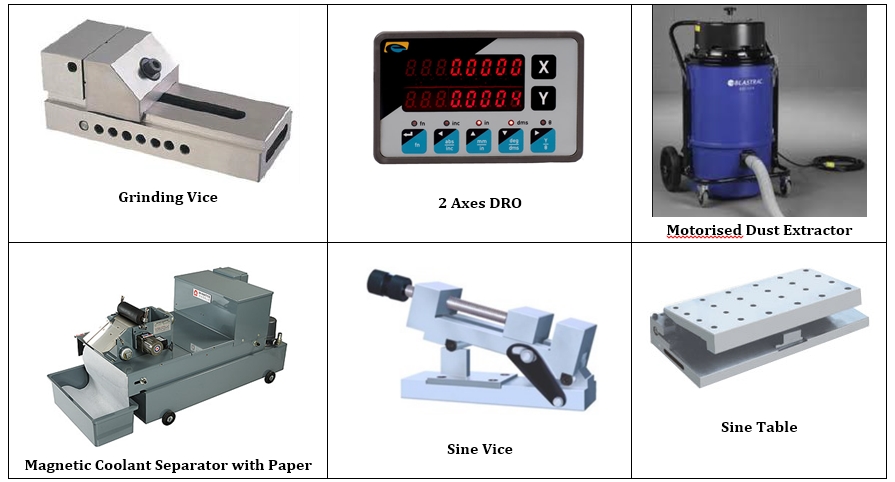

Accessories:
