Description:
-
Machine table, column, knee, base made of stress relieved grey cast iron grade FG-260 as per IS:210 standard
-
Highly versatile all geared knee type vertical milling machine capable of performing complex operations
-
Case hardened & ground alloy steel spindle, gears and spline shafts in headstock
-
All axes auto feed is provided with a single SERVO Motor
Specifications:
|
MODEL |
SV-3S |
SV-4S |
|
Table Overall Size |
1550mm x 310mm |
1900mm x 350mm |
|
Table Clamping Area |
1350mm x 310mm |
1600mm x 350mm |
|
T-Slots (No./ Size/ Centre Distance) |
3 Nos. / 16 mm/ 65 mm |
3 Nos. / 18 mm/ 80 mm |
|
Longitudinal Traverse (Auto/ Manual) |
975 mm / 1000 mm |
1275 mm / 1300 mm |
|
Cross Traverse (Auto/ Manual) |
290 mm / 300 mm |
330 mm / 350 mm |
|
Vertical Traverse (Auto/ Manual) |
400 mm / 425 mm |
400 mm / 425 mm |
|
Spindle |
|
|
|
Spindle Taper |
ISO-40 |
ISO-50 |
|
Spindle Speed Range |
35 to 1800 RPM |
35 to 1800 RPM |
|
Quill Travel |
100mm |
100mm |
|
Head Swivel |
±45º |
±45º |
|
Feed Range |
|
|
|
No. of Feed |
20 Nos. |
20 Nos. |
|
Feed Range (Longitudinal & Cross) |
16 to 800 mm/min |
16 to 800 mm/min |
|
Vertical Feed Range |
4 to 200 mm/min |
4 to 200 mm/min |
|
Rapid Traverse (Longitudinal and Cross) |
3200 mm/min |
3200 mm/min |
|
Power |
|
|
|
Spindle (TEFC Induction Motor) |
5.5 kW |
7.5 kW |
|
Feed (Servo Motor) |
3 kW |
3 kW |
|
Coolant Motor |
0.07 kW |
0.07 kW |
Accuracy: Geometric & Functional Accuracy as per IS: 2200
Surface milling by automatic longitudinal movement and manual vertical displacement is:
-
0.005mm/200mm on flat surface
-
0.01mm/200mm on perpendicular surface
Milling Accessories:

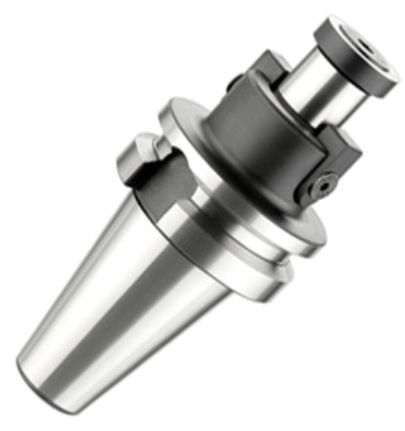

Stub Milling Arbour |
Milling Vice (Fixed & Swivel) |

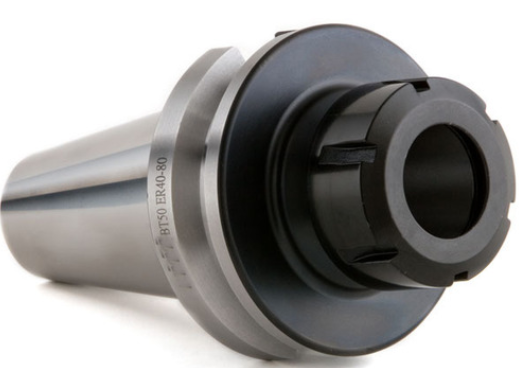

Collet Chuck for Conical Collets |

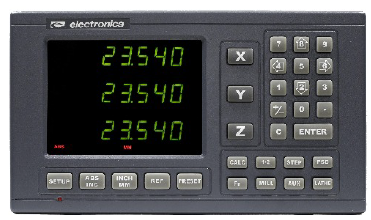

3 Axes Digital Readout |

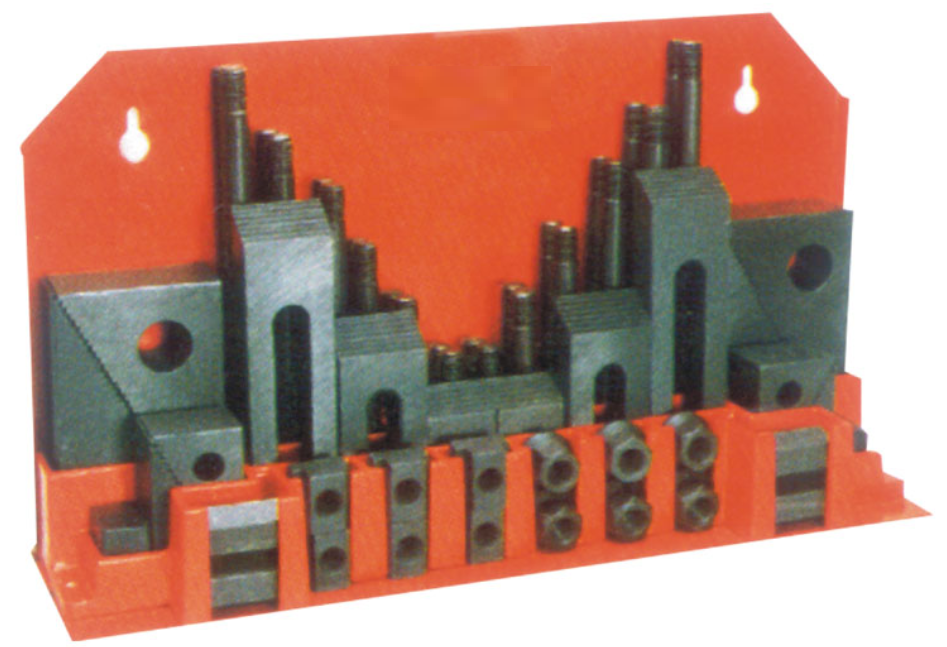

Work Piece Clamping Kit |

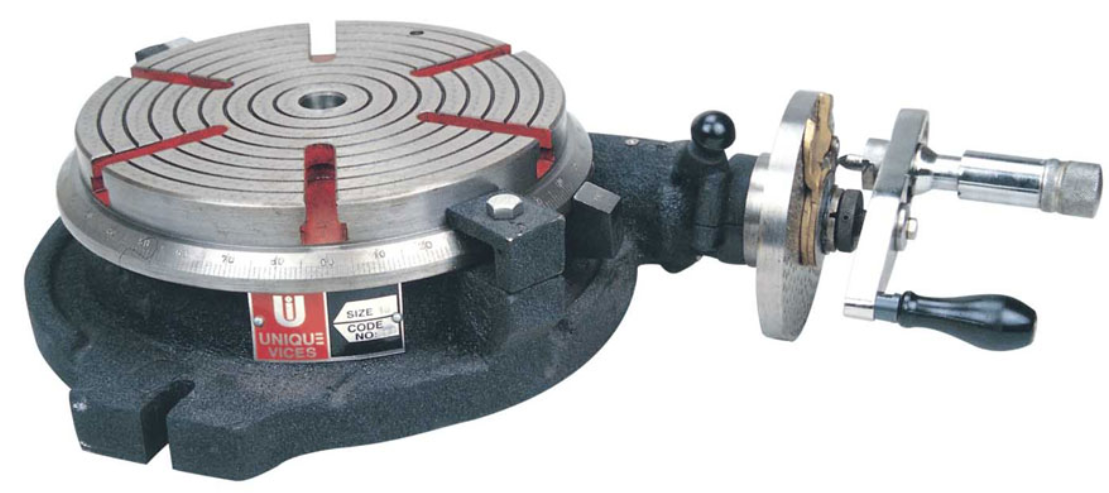

Manual Rotary Table |
