Description:
-

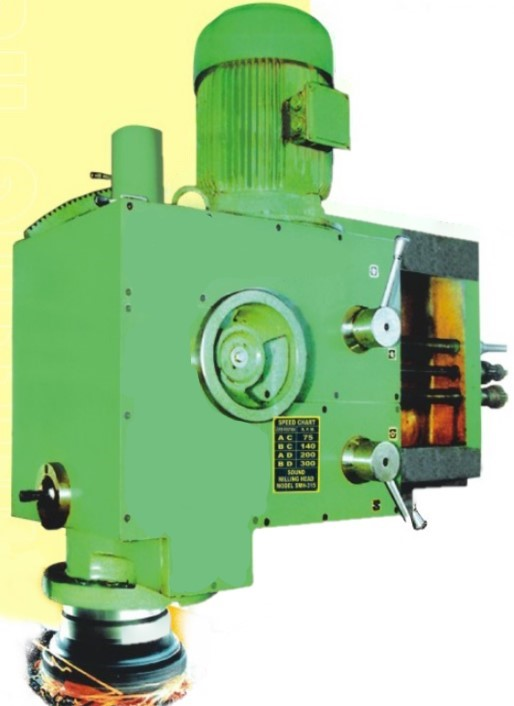

Milling head for Plano-milling, made of made of high-grade grey cast iron conforming to IS:210
-
All gears, spindle and quill made of case hardened & ground alloy steel
-
High torque transmission gear box with helical gears and self-contained auto lubrication for low noise operations
-
Spindle bearings lubricated for life with molybdenum sulphide grease
-
Spindle Taper ISO-50
-
Milling Heads ranging from 2.2 kW to 60 kW
Specifications:
|
MODEL |
SMH-125 |
SMH-150 |
SMH-200 |
SMH-300 |
SMH-350 |
SMH-400 |
|
Spindle Power |
3.7 kW |
5.5 kW |
7.5 kW |
11 kW |
15 kW |
18.5 kW |
|
Spindle Diameter |
120mm |
120mm |
120mm |
140mm |
140mm |
140mm |
|
Spindle Speed Range |
120-500 RPM |
120-500 RPM |
100-400 RPM |
75-300 RPM |
75-300 RPM |
75-300 RPM |
|
Manual Quill Movement |
100 mm |
110 mm |
125 mm |
140mm |
150mm |
200mm |
|
Max Dia. of Milling Cutter |
125 mm |
160 mm |
200 mm |
300mm |
350mm |
400mm |
Accessories: Adopter Back Plate, Right Angle Attachment, Gearboxes for Table Drive, Cross Feed and Cross Rail Lifting
Accuracy: Spindle run-out: 0.01 mm
Application:
-
Increasing productivity by conversion of Planer to Plano miller. Single point tool cutting can be replaced by high speed, multi-point cutting by carbide cutters
-
Cutting load is taken over by Milling Head reducing the load and speed of the table, thereby improving productivity and increasing machine life
