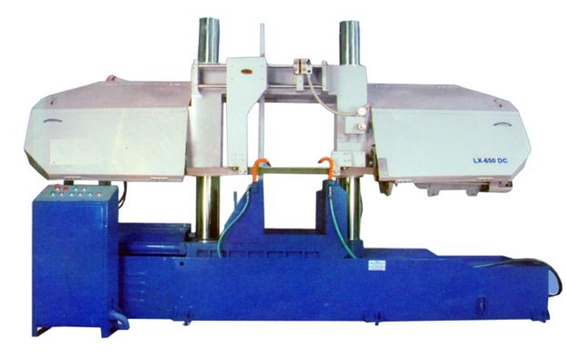

Double Column Bandsaw

Description:

• Double Column Semi Automatic (DC) & Automatic (DCA) Horizontal Band saw
• Hydraulic cutting feed maintains constant cutting rate regardless of work piece cross section
• Hydraulic blade tensioning system and guides keep blade under constant load during cutting
• Automatic saw frame height adjustment and blade shut off after job completion
• Blade breakage sensor / motion detector providing automatic shut off
• Hydraulic clamping / declamping for rigid securing the work piece under heavy cutting load
• Motorized chip removal wire brush

Optional:

• Automatic Version (DCA): having PLC based control panel with:
• Variable Frequency Drive for linear band speed
• Multiple indexing with 300 mm in a single stroke
• Digital piece counter and length counter with ±0.2 mm accuracy



Specifications:

Model	LX-210	LX-300	LX-450	LX-530	LX-600
Cutting Capacity (Round) at 90⁰	210 mm	300mm	450mm	530mm	600mm
Cutting Capacity (Square) at 90⁰	210mm x 210mm	300mm x 300mm	450mm x 450mm	530mm x 530mm	600mm x 600mm
Blade Speed	20-80 M/min	20-80 M/min	20-80 M/min	15-75 M/min	15-75 M/min
Blade Size	4100mm x 34mm x 1.1mm	4570mm x 41mm x 1.3mm	5450mm x 41mm x 1.3mm	6900mm x 54mm x 1.6mm	8800mm x 67mm x 1.6mm
Main Motor	1.5 kW	2.2 kW	5.5 kW	7.5 kW	10 kW
Hyd. Motor	0.75 kW	0.75 kW	1 kW	1.5 kW	1.5 kW

§  Please use bimetal blades for optimal cutting output
