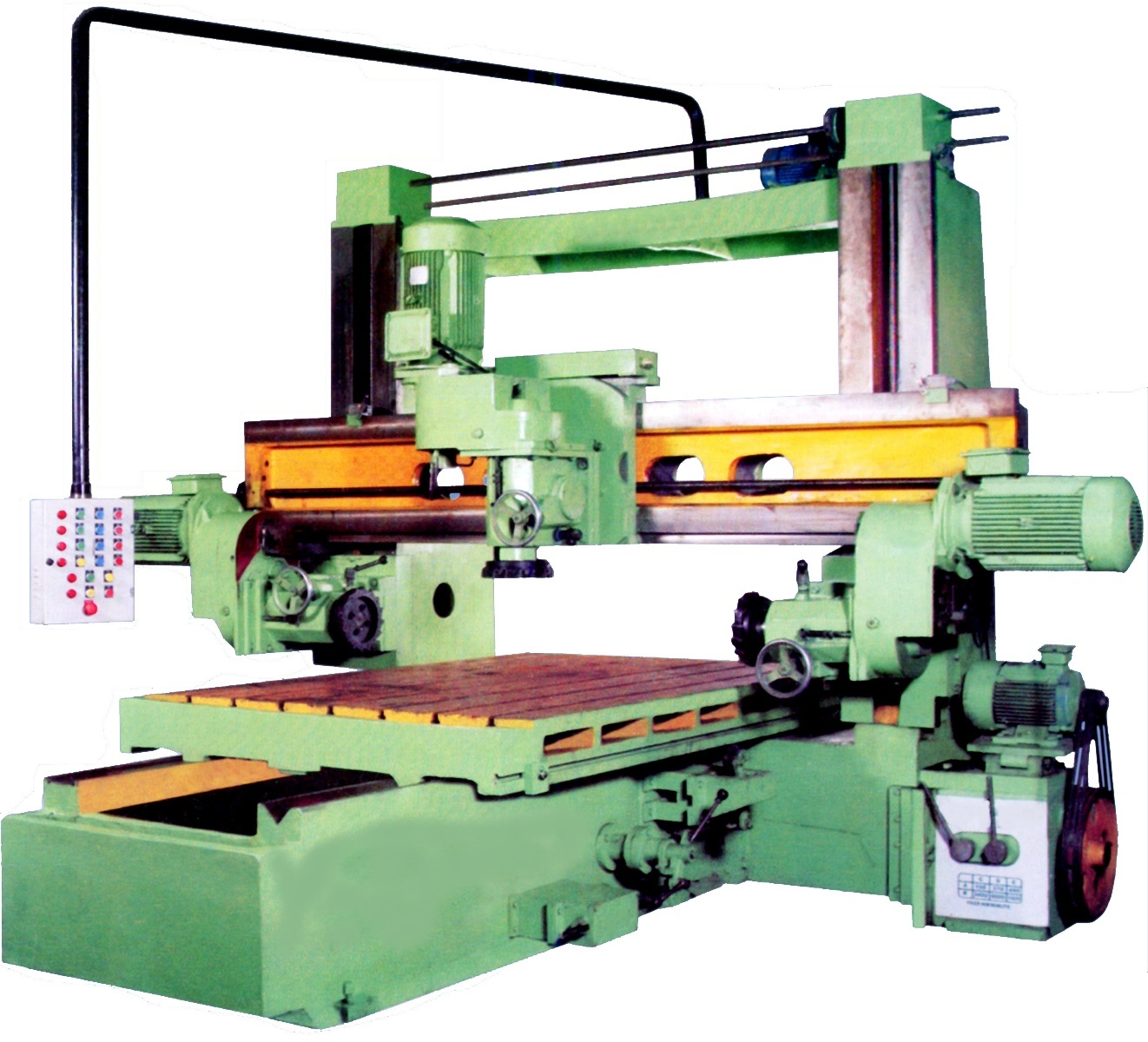

TECHNICAL SPECIFICATIONS |
|
|
Table |
|
|
Table Drive Assembly |
Gear Box mated with Induction Motor and Variable Frequency AC Drive, fitted with couplings |
|
Table Movement Mechanism |
Options of: Leadscrew and Nut (Standard) Rolled Ball screw and Nut (For Precision Machines) Rack and Pinion (For Very Large and Heavy Machines) |
|
Table Length |
2000mm to 15000mm |
|
Table Width |
1000mm to 2500mm |
|
Table Traverse |
10 to 1000 mm/min (infinitely variable) |
|
Table Type |
T-Slotted |
|
Table Drive Power |
3.7 kW to 15 kW |
|
Column |
|
|
Column Movement Mechanism |
Screw and Nut |
|
Distance Between Column |
1200mm to 4000 mm |
|
Width of Column |
300mm to 600mm |
|
Cross Rail |
|
|
Cross Rail Movement Mechanism |
Screw and Nut |
|
Height Under Cross Rail |
1000mm to 2000 mm |
|
Vertical Movement of Cross Rail |
Motorised |
|
Cross Feed and Rapid Traverse |
Motorised |
|
Milling Head on Cross Rail |
|
|
Milling Head Drive |
Gear Box mated with Induction Motor |
|
No. of Milling Heads |
1 to 3 Nos. |
|
Spindle Taper & Diameter |
ISO-40 / ISO-50 |
|
Quill Movement |
Manual |
|
Cutter Diameter |
100mm to 600 mm (for face milling of carbon steel) |
|
Milling Head Power |
3.7kW to 75 kW (Depending on cutter diameter / depth of cut / material removal) |
|
Material of Construction |
|
|
Table, Column, Cross Rail, Bed |
Grey Cast Iron |
|
Spindle / Shafts / Gears |
Alloy Steel |
|
Machine Performance |
|
|
Geometric & Functional Accuracy |
As per IS:2877 |
|
Spindle Run Out |
Within 0.01 mm |
