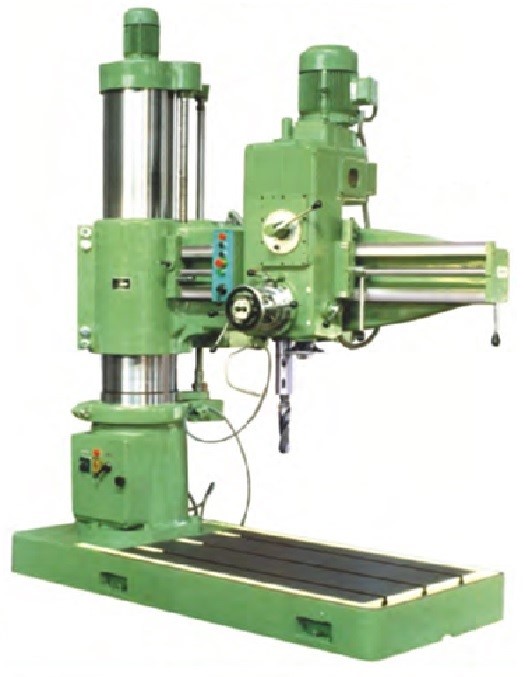

Radial Drill

Radial Drill

Description:

  • Machines made from high grade grey cast iron conforming to IS:210
  • Hardened & ground alloy steel spindle and gears
  • Friction disc clutches to start & stop the spindle for protecting the transmission system from overload
  • Double column structure for high load bearing capacity and reduced wear & tear.
  • Electro-mechanical clamping of drill head for rigidity under heavy work load.



Specifications:

MODEL

RDM-50/1500

RDM-50/1900

RDM-60/1500

RDM-60/1900

RDM-60/2300

Drilling in Steel

50mm

50mm

60mm

60mm

60mm

Drilling in Cast Iron

60mm

60mm

70mm

70mm

70mm

Max Drilling Radius

1500 mm

1890mm

1500 mm

1890mm

2350mm

Column Diameter

350mm

350mm

350mm

350mm

400mm

Spindle Power

3.6/ 4.5 kW (Dual Speed)

Elevating Motor

1.5 kW

1.5 kW

1.5 kW

1.5 kW

2.2 kW

Spindle Taper

MT-5

MT-5

MT-5

MT-5

MT-5

Feed Range

0.12 to 1.25 mm/rev

Spindle Travel

325 mm

Optional: Hydraulic clamping available in all models in lieu of electromechanical clamping.

Accuracy: Geometric & Functional Accuracy as per IS: 2199

  • Movement of drilling head parallel to base plate 0.015mm/ 1000mm of traverse
  • True running of taper in spindle at top position 0.015mm

Accessories:

Cast Iron Box Table, Universal Tilting Table, Drill Vice, Drill Vice, Coolant System, Hydraulic clamping of Drill Head

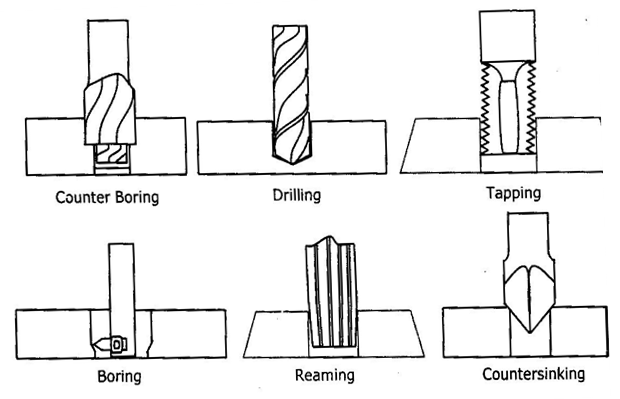

Applications:

Applications
