Description:
- Heavy machines, capable of handling work pieces of weight 3,000 to 35,000 Kg
- Machine made of high grade grey cast iron conforming to IS:210

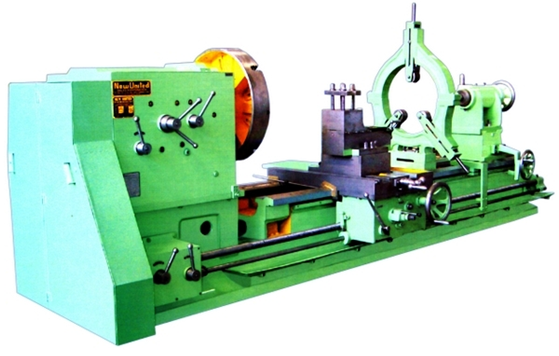

- Planer Type Bed Lathes having 2V and 2-Flat deisgn
- Built in gap bed for machining large diameter components
- Geared head drive with heavy duty spindle bearings and large diameter bore for handling heavy cutting load
- Typical usage in roll turning/ grinding in steel industry, maintenance workshops in large power plants, cement plants, oil refineries and shipyards
Specifications:
|
MODEL |
HD-400 |
HD-500 |
HD-600 |
HD-750 |
HD-900 |
|
Capacity |
|
|
|||
|
Center Height |
400 mm |
500 mm |
600 mm |
750mm |
900mm |
|
Swing Over Bed |
800 mm |
1000 mm |
1200 mm |
1500 mm |
1800mm |
|
Swing Over Saddle |
550 mm |
725 mm |
950 mm |
1200 mm |
1500 mm |
|
Swing in Gap |
1150 mm |
1450 mm |
1700 mm |
2400 mm |
2650 mm |
|
Distance Between Centers |
2000 to 5000 mm |
2000 to 5000 mm |
2000 to 5000 mm |
3000 to 7000 mm |
3000 to 10000 mm |
|
Bed Width |
500 mm |
600mm |
750mm |
900mm |
1200 mm |
|
Headstock |
|
|
|||
|
Spindle Taper |
MT-5 |
MT-5 |
MT-5 |
MT-6 |
MT-6 |
|
Spindle Bore Diameter |
105 mm 125 mm (O) |
105 mm 125 mm (O) |
105 mm 125 mm (O) |
105 mm 125 mm (O) |
125 mm 150 mm (O) |
|
Spindle Speed Range |
10 to 200 RPM |
10 to 200 RPM |
10 to 200 RPM |
10 to 200 RPM |
5 to 90 RPM |
|
Motor Power |
|
|
|||
|
Main Motor |
7.5 to 15 kW |
7.5 to 15 kW |
7.5 to 15 kW |
15 to 22.5 kW |
18.5 to 40 kW |
|
Job Weight Handling |
|
|
|
|
|
|
(With Steady Rest) |
3000 to 6000 Kg |
3000 to 8000 Kg |
4000 to 10000 Kg |
5000 to 15000 Kg |
10000 to 35,000 Kg |
Accuracy: Geometric & Functional Accuracy as per IS: 1878 (Part-II / Part-III)

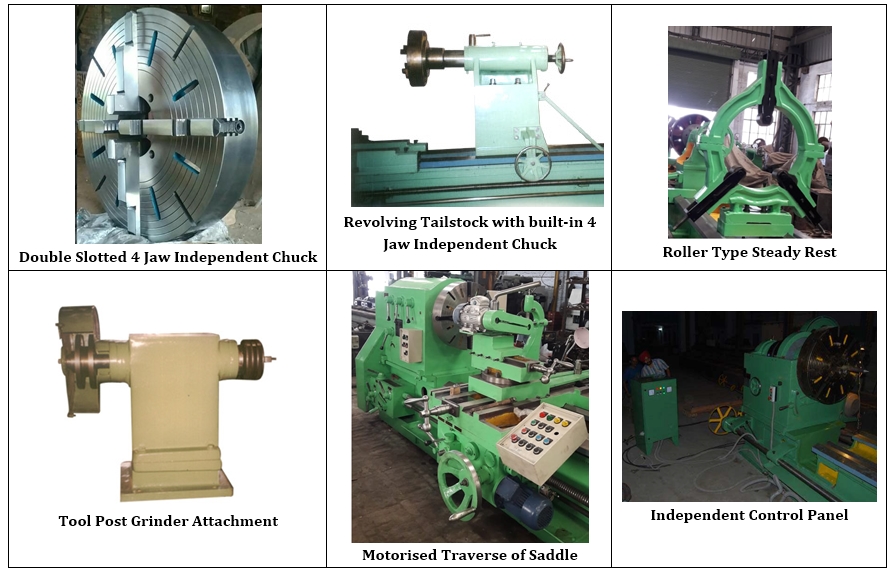

Heavy Duty Geared Lathe Accessories:
