Description:
- Machines made from high grade grey cast iron conforming to IS:210
- Excellent surface finish of casting by shot blasting process
- Case hardened & ground alloy steel spindle with run out accuracy within 10 micron
- Powerful and heavy weight machines to withstand heavy cutting load and ensure high resistance to vibration
Specifications:
|

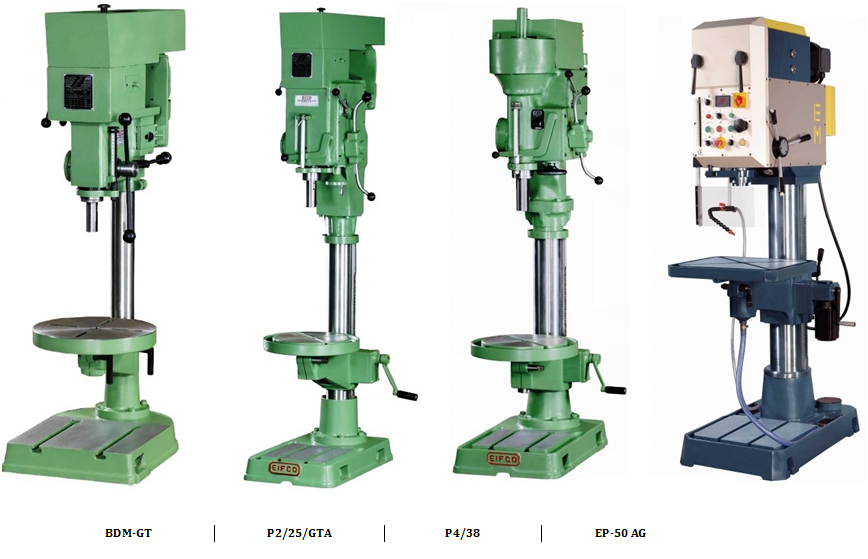

MODEL |
BDM-GT |
P2/25/GTA |
P4/38 |
EP-50 AG |
|
Drilling Capacity (in Steel) |
20 mm |
25 mm |
38 mm |
50 mm |
|
Tapping Capacity (in Steel) |
M 12 (Optional) |
M 16 (Optional) |
M 22 (Optional) |
M 40 |
|
Spindle Taper |
MT-2 |
MT-3 |
MT-4 |
MT-4 |
|
Spindle Traverse |
125 mm |
140 mm |
178 mm |
200 mm |
|
Pillar Diameter |
76.2 mm |
120 mm |
140 mm |
175 mm |
|
Spindle to Column |
200 mm |
260 mm |
311 mm |
350 mm |
|
Spindle to Table |
300 mm |
610 mm |
555 mm |
630 mm |
|
Spindle to Base |
600 mm |
1080 mm |
1000 mm |
1170 mm |
|
Table Size |
Dia: 370 mm |
Dia: 335 mm |
Dia: 370 mm |
400mm x 500mm |
|
Base Working Surface |
385mm x 375 mm |
318mm x 300 mm |
370mm x 330 mm |
400mm x 460mm |
|
Spindle Speed Range |
100 to 2700 RPM (10 steps) |
100 to 2700 RPM (10 steps) |
170 to 680 RPM (5 steps) |
25 to 1200 RPM (12 steps) |
|
Feed Range |
Hand Feed |
0.1 - 0.3 mm/rev (3 steps) |
0.09- 0.28 mm/rev (3 steps) |
0.07-0.4 mm/rev (4 steps) |
|
Spindle Motor |
0.75 kW |
1.5 kW |
1.5 kW |
2.2 kW |
|
Net Weight |
220 Kg |
610 Kg |
850 Kg |
1200 Kg |
Accuracy: Geometric & Functional Accuracy as per IS: 2425
Accessories: Drill Chuck, Drill Vice, Coolant System, Machine Lamp
