Description:

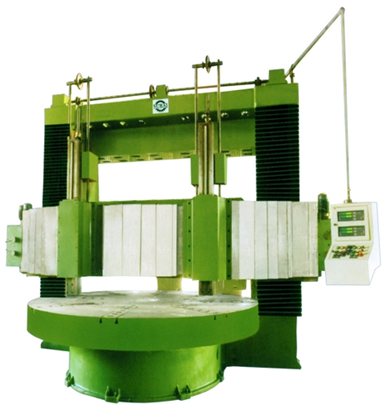

- Double column vertical lathe, suitable for turning and boring operations
- High grade cast iron body conforming to IS:210 – table, ram, bed, columns and cross slide
- Motorized Up-Down movement of Cross Rail with one ram head with ± 30º swivel
- Centralized control station with interlocked electrical control panel
Specifications:
|
MODEL |
SVT-1.5 |
SVT-2 |
SVT-2.5 |
SVT-3 |
|
Table Diameter |
1500 mm |
2000 mm |
2500 mm |
3000 mm |
|
Max. Turning Diameter |
1760 mm |
2260 mm |
2800 mm |
3300 mm |
|
Max. Working Height |
1250 mm |
1500 mm |
2000 mm |
2250 mm |
|
Max Vertical Travel of Ram Head |
600 mm |
850mm |
850 mm |
1000 mm |
|
Table Speed |
10-40 RPM |
5-25 RPM |
5-25 RPM |
2-20 RPM |
|
Main Motor |
7.5 kW / (O) 15 kW |
15 kW / (O) 30 kW |
18.5 kW / (O) 37 kW |
22.5 kW / (O) 45 kW |
|
Horizontal Feed |
0.5 to 5 mm/rev |
|||
|
Swivel Angle of Ram Head |
±30⁰ |
|||
Accuracy: Geometric & Functional Accuracy as per IS: 2063
- Roundness using Turret Head/ Ram Head/ Side Head: 0.02mm/ 300mm diameter
- Flatness for facing operation: 0.02mm/300mm diameter in concave direction only
Application:
- Machining of large and heavy components such as parts of engines, turbines, transmissions
- Machining large asymmetrical work pieces that are difficult to clamp on a horizontal lathe
Accessories: Additional ram head on cross rail, Turret head on cross rail, Threading head on cross rail, Side ram head, Milling Attachment, Grinding Attachment, Coolant system, Complete Guard, Chip conveyor
