Description:
-
Machine table, column, knee, base made of stress relieved grey cast iron grade FG-260 as per IS:210 standard
-

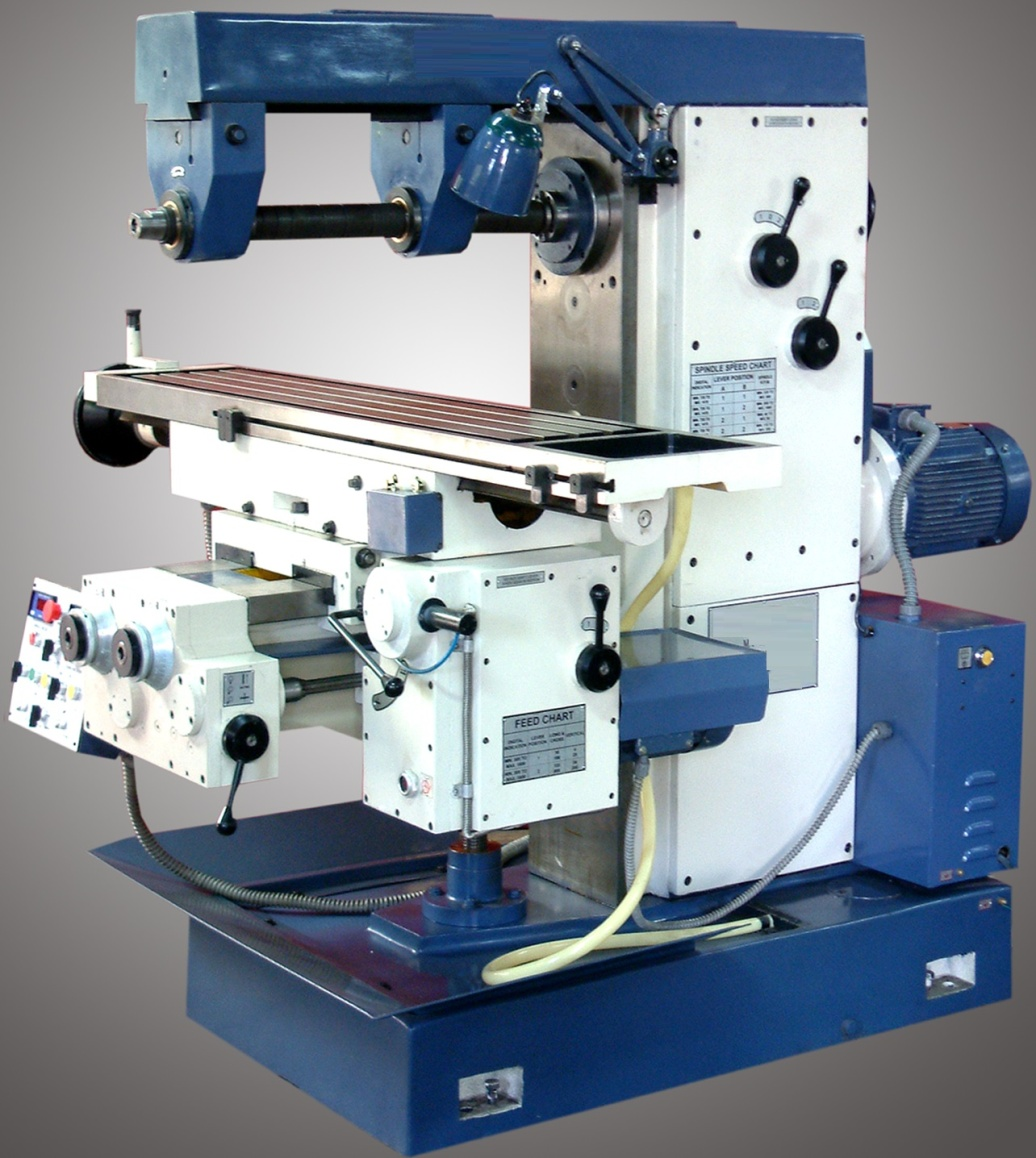

Highly versatile all geared knee type vertical milling machine capable of performing complex operations
-
Case hardened & ground alloy steel spindle, gears and spline shafts in headstock
-
All axes auto feed is provided with a single SERVO Motor
-
The working table swivels ±45º
Specifications:
|
MODEL |
SU-3S |
SU-4S |
|
Table |
|
|
|
Table Overall Size |
1550mm x 310mm |
2000mm x 350mm |
|
Table Clamping Area |
1350mm x 310mm |
1600mm x 350mm |
|
Longitudinal Table Traverse |
975mm |
1275mm |
|
Cross Table Traverse |
330mm |
330mm |
|
Vertical Table Traverse |
400mm |
400mm |
|
Spindle |
|
|
|
Spindle Nose Taper |
ISO-40 |
ISO-50 |
|
Spindle Speed Range |
35-1800 RPM |
35-1800 RPM |
|
Feed Range |
|
|
|
No. of Feeds |
18 steps |
18 steps |
|
Longitudinal Feed Range |
16-800 mm/min. |
16-800 mm/min. |
|
Cross Feed Range |
16-800 mm/min. |
16-800 mm/min. |
|
Vertical Feed Range |
4-200 mm/min. |
4-200 mm/min. |
|
Power |
|
|
|
Spindle (TEFC Induction Motor) |
5.5 kW |
7.5 kW |
|
Feed (Servo Motor) |
3 kW |
3 kW |
Accuracy: Geometric & Functional Accuracy as per IS: 2200
Surface milling by automatic longitudinal movement and manual vertical displacement is:
-
0.005mm/200mm on flat surface
-
0.01mm/200mm on perpendicular surface

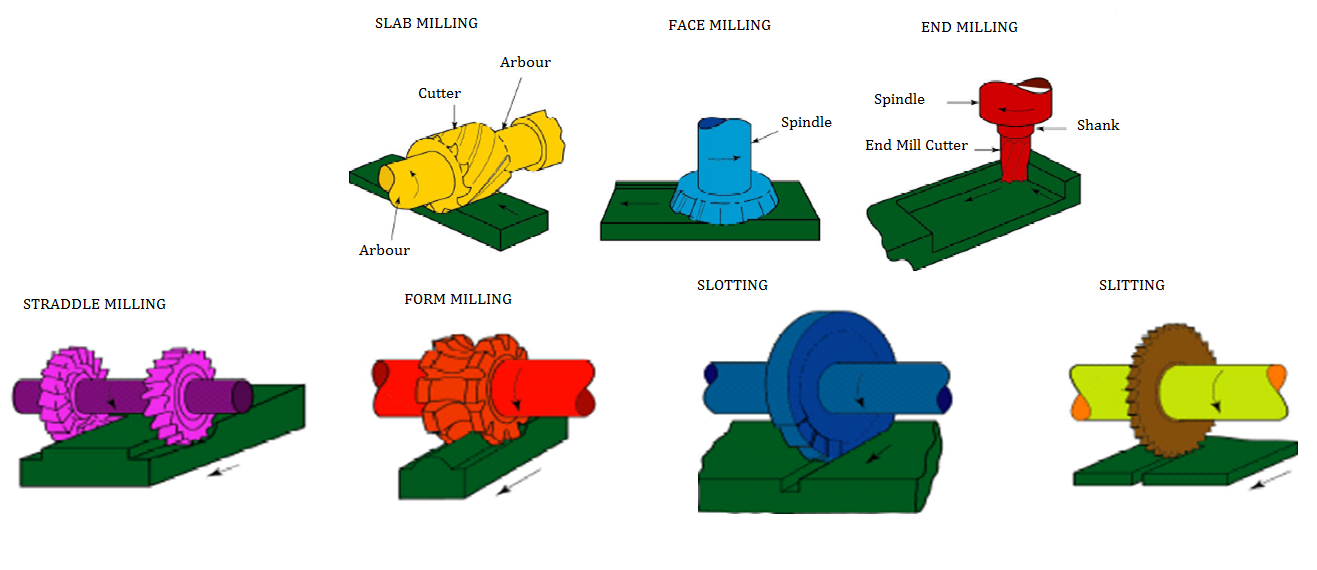

Applications:
Milling Accessories:

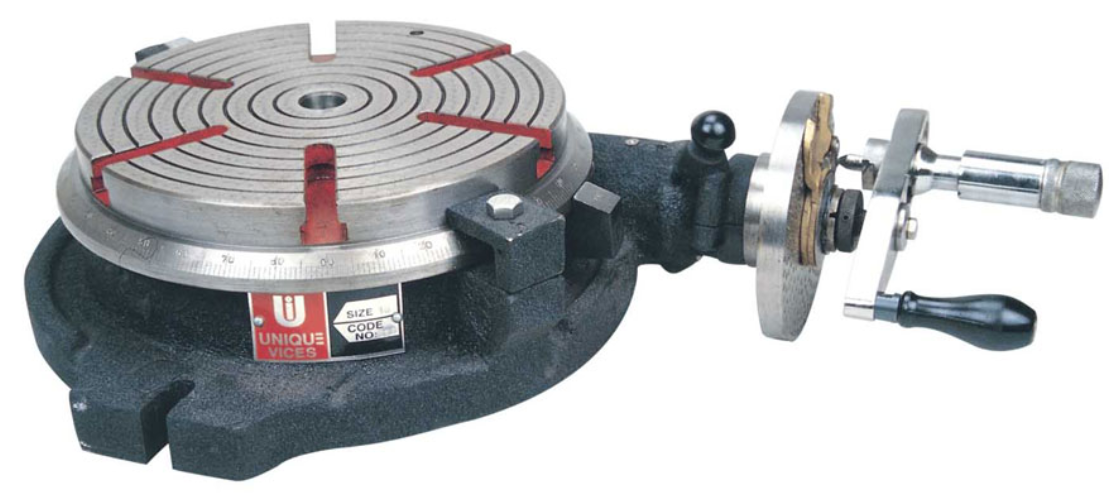

Manual Rotary Table |

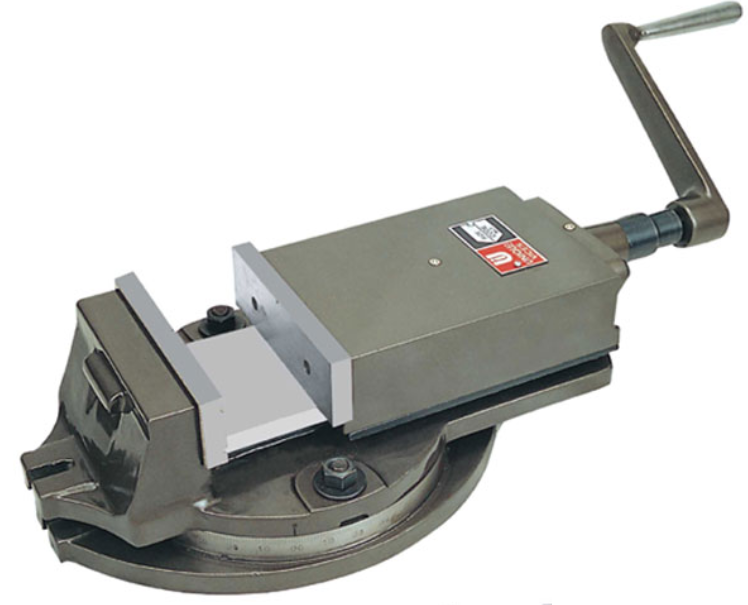

Milling Vice (Swivel Base) |

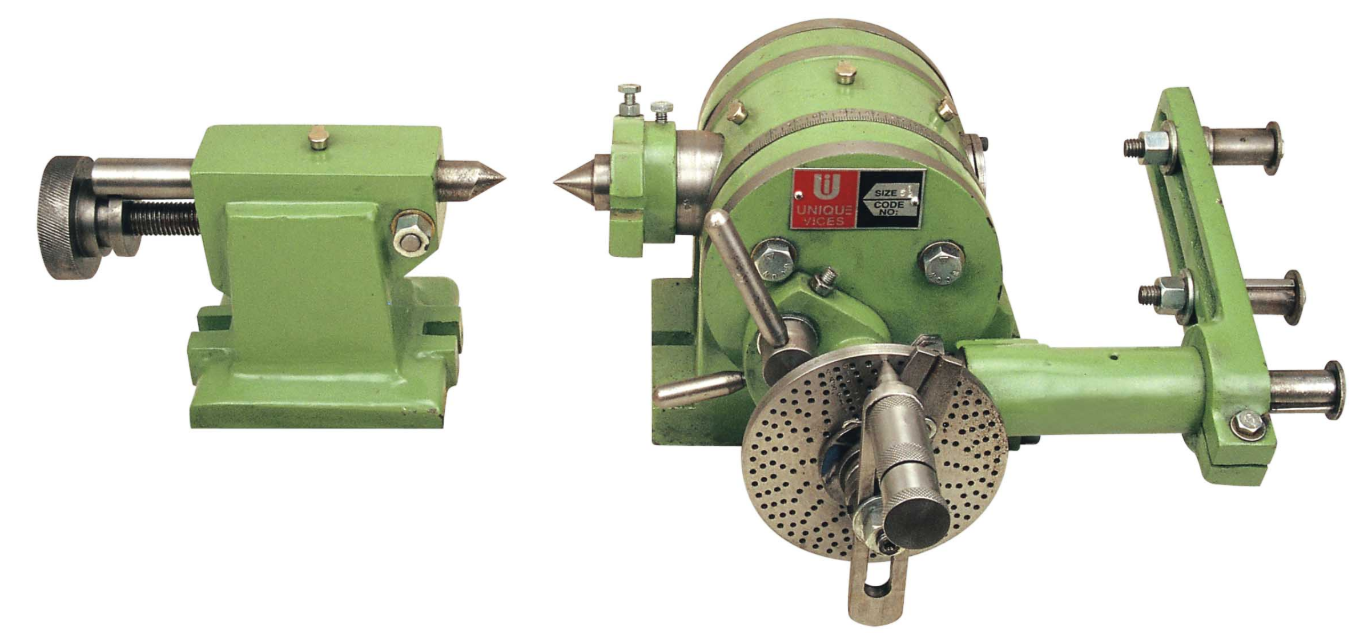

Dividing Head |

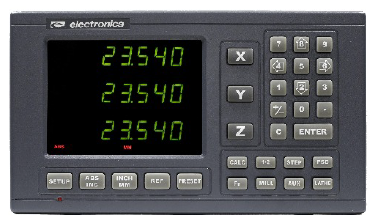

3 Axes Digital Read Out |

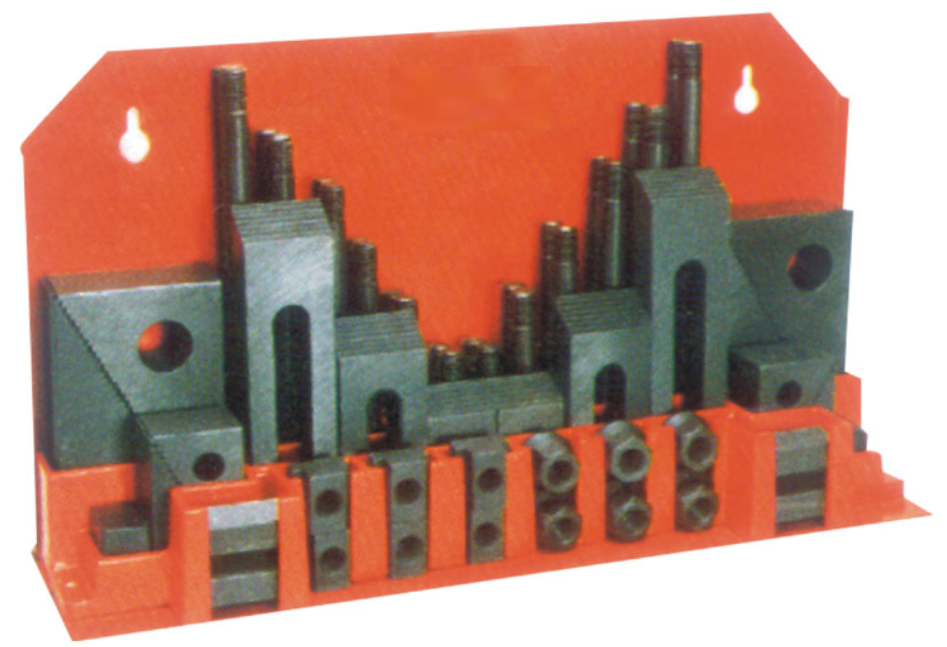

Clamping Kit |
Long Milling Arbour |

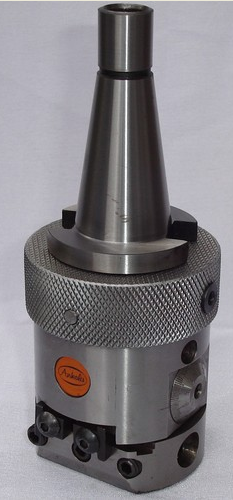

Micro Boring & Facing Head |

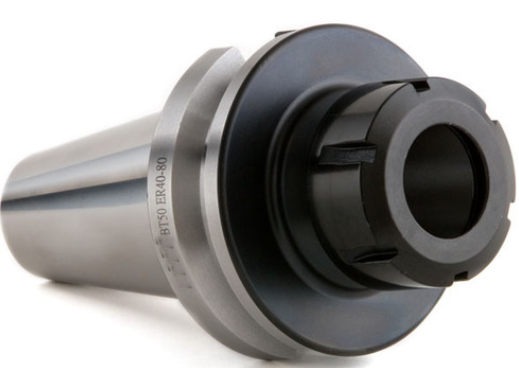

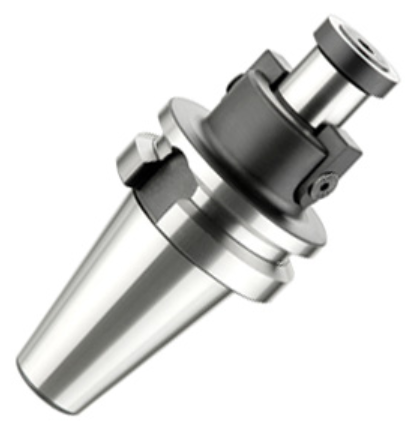

Stub Arbour |
Collet Chuck |
