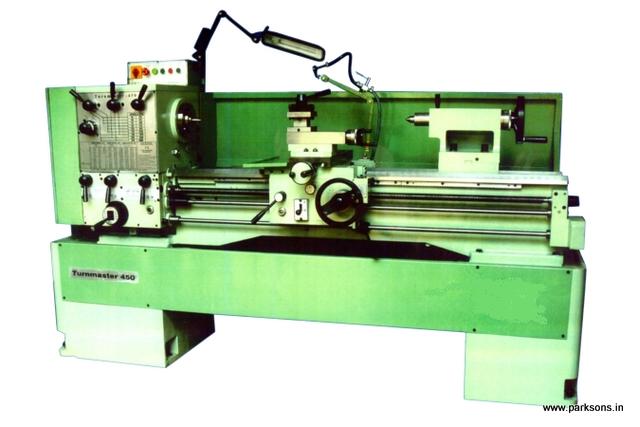

Description: All Geared Precision Centre Lathe
- Graded Casting with Hardened & Ground Guide ways
- Hardened & Ground Spindle and Gears in Headstock
- Induction hardened & Toughened Gears in Feedbox
- American Nose Spindle is standard and Cam lock Spindle Nose is optional
- Double screw apron totally enclosed in oil bath with overload tripping arrangement
Specifications: (In mm unless specified otherwise)
| Model | TM-350 | TM-400 | TM-450 |
| Center Height | 175 | 200 | 225 |
| Swing Over Bed | 350 | 400 | 450 |
| Swing Over Cross Slide | 200 | 250 | 280 |
| Distance between centers | 800 | 1000 / 1500 | 1250 / 1650 /2000 |
| Spindle Bore | 40 | 55 | 55 |
| Speed Range | 71-1800 RPM | 71-1600 RPM | 40-2000 RPM |
| Longitudinal feed range | 0.045-0.63 | 0.045-0.63 | 0.04-2.24 |
| Transverse feed range | 0.015-0.21 | 0.015-0.21 | 0.012-0.7 |
| Main Motor | 2.2kW | 3.7kW | 5.5kW |
Accuracy: As per IS Standard 1878 (Part-I)
- Work piece on Chuck (Turning)-Roundness of 0.01mm taper near headstock
- Work piece between Centers (Facing) Flatness of 0.02mm/ 300mm length in concave direction
Applications:
- Provides high precision machining for turning, facing, drilling, taper turning & boring operations
- Useful in laboratories, sample making, R&D divisions and tool making
Accessories:
Self Centering Chuck, Independent Jaws Chuck, Steady Rest, Follow Rest, Revolving Center, Gap Bed, Digital Read Out, Taper Turning Attachment, Grinding Attachment, Electromagnetic Footbrake, Milling Attachment
