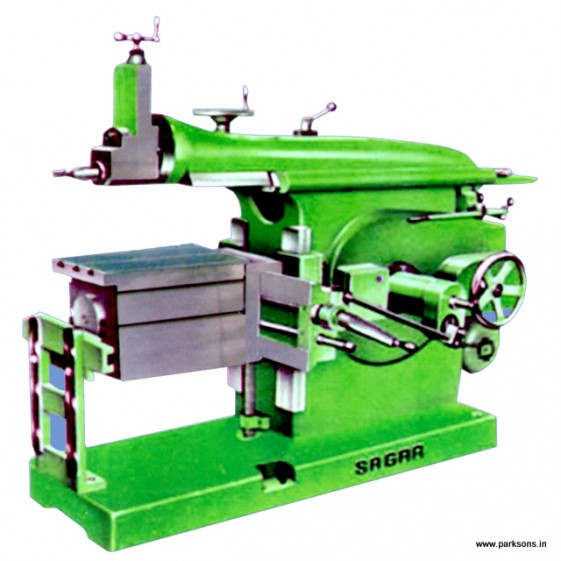

Description: Heavy Duty All Geared Shaping Machine
- The table can move ±600
- The tool head also swivels ±600
- The casting of the column, ram, cross slide and table are of high grade C.I.
Specifications: (In mm unless specified otherwise)
| Dimension | SM 18 | SM 24 | SM 26 | SM 30 | SM 36 |
| Working Stroke | 450 | 610 | 660 | 760 | 915 |
| Working Table | 400 x 290 | 480 x 330 | 515 x 330 | 610 x 360 | 915 x 450 |
| Max. Table Horizontal Traverse | 500 | 610 | 660 | 760 | 870 |
| Max. Table Vertical Traverse | 300 | 430 | 430 | 430 | 380 |
| Max. Tool Shank | 32 x 16 | 51 x 21 | 51 x 21 | 38 x 21 | 38 x 21 |
| Stroke/Minute (4-Speed) | 17-75 | 12-72 | 10-70 | 12-67 | 12-67 |
| Main Motor | 1.5 kW | 2.2 kW | 2.2 kW | 3.7 kW | 3.7 kW |
Accuracy: As per IS Standard 2310
- Parallelism of the guide for the table support to traverse movement of table is 0.03mm/300mm
- Working accuracy of the machine parallelism of 0.03mm/300mm
Application:
- Shaping of Grooves, Slots, Steps and Keyways
- Shaping inclined surfaces, beveled surfaces, dovetails
- Cutting of splines and gear teeth
- Irregular cutting and contour shaping
Accessories:
Auto tool lifting, Auto down feed, Keyway cutting attachment, Hydro-copying attachment
